FJ CRSR Cowl — Baja Designs S1 15° Angled Integration

VNTR WORKS

$129.00 USD

Sale Sold out

Shipping calculated at checkout.

Free international shipping on orders $299+.
Ships from the United Arab Emirates.

Baja Designs light is NOT included.
This is one vehicle-specific FJ Cruiser cowl housing. Choose the physical side, antenna opening, bracket clearance and finish below.
Not sure? Use VNTR Guided Setup →

How to Choose the Correct Variant

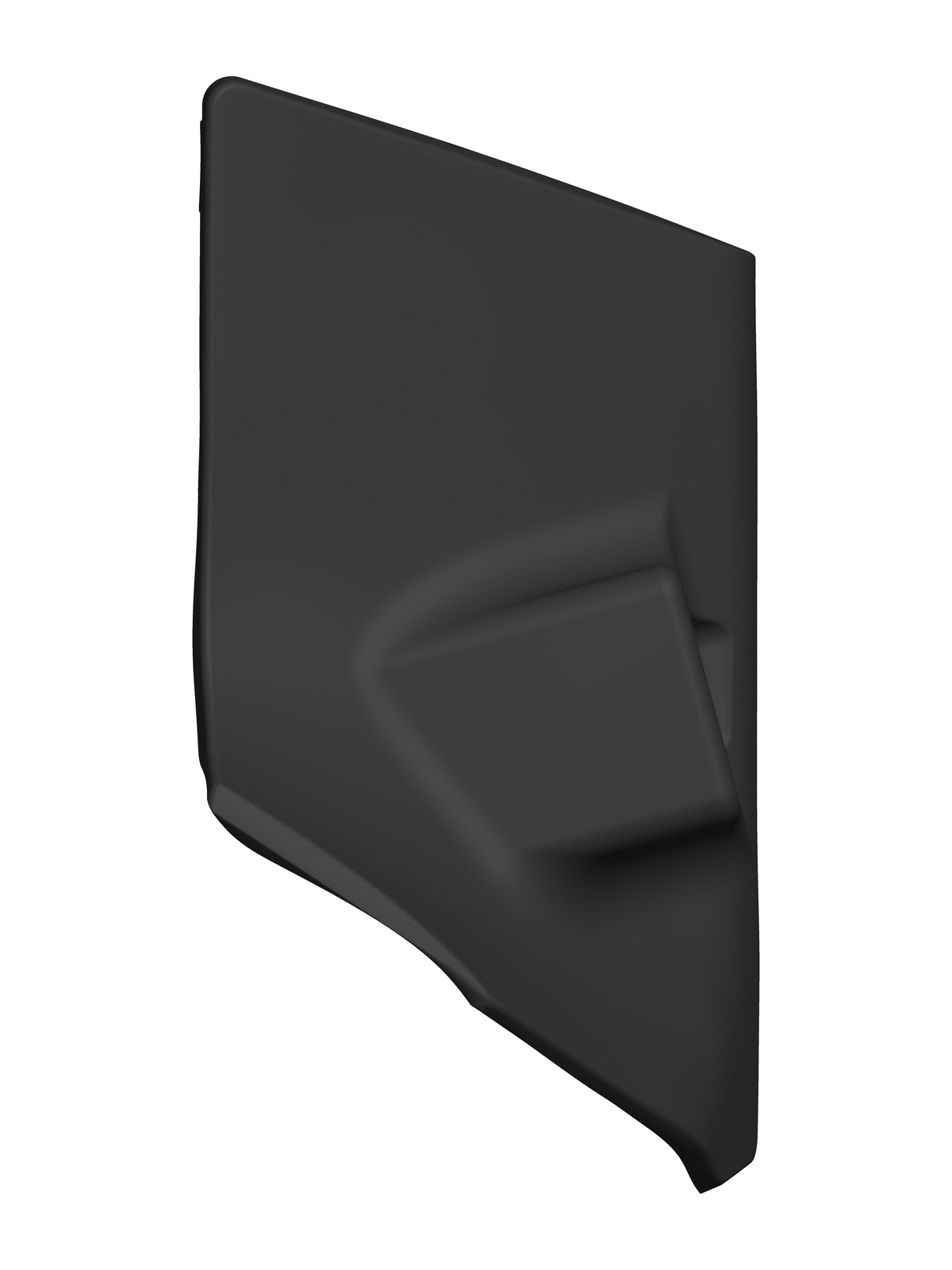

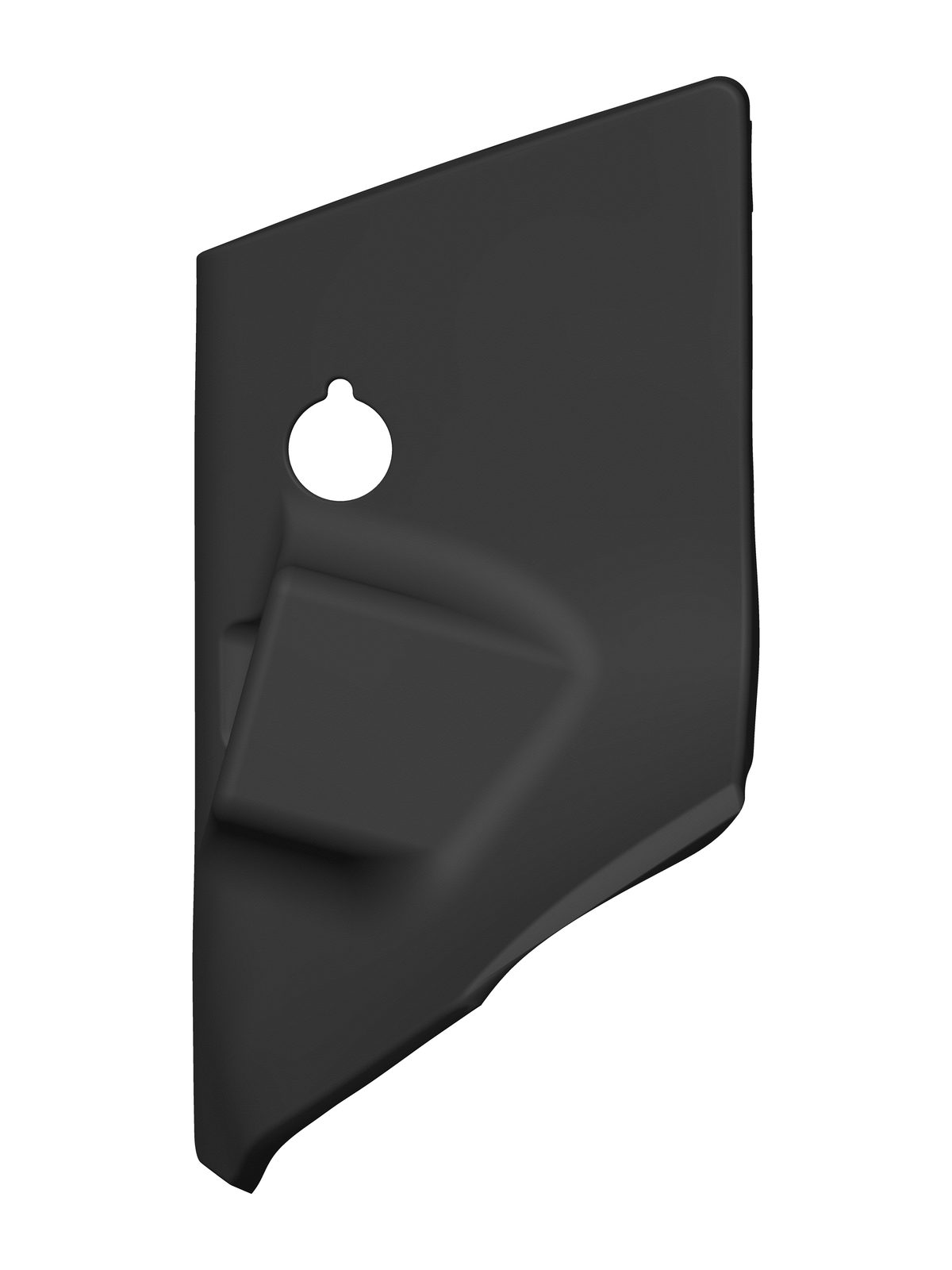

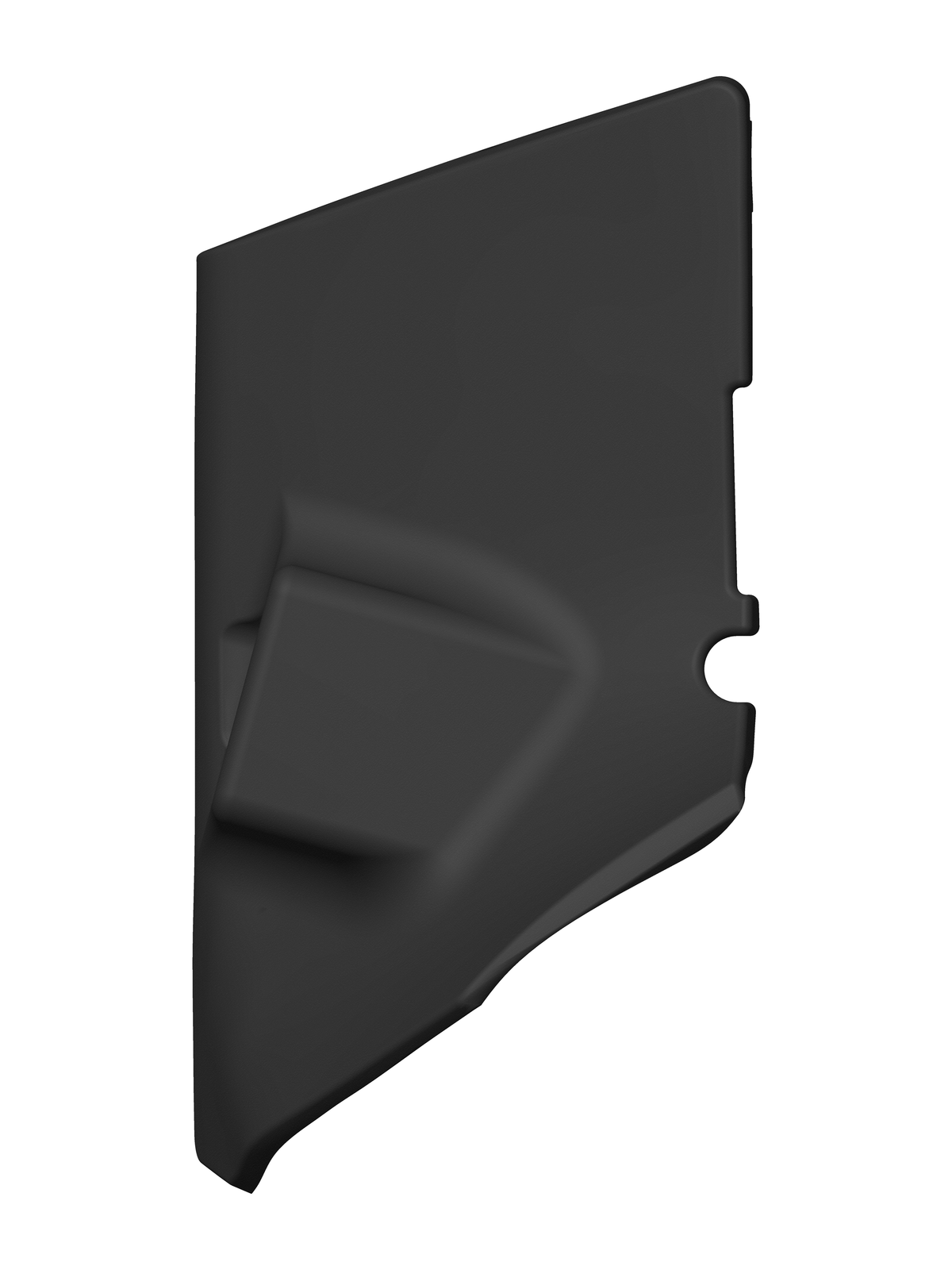

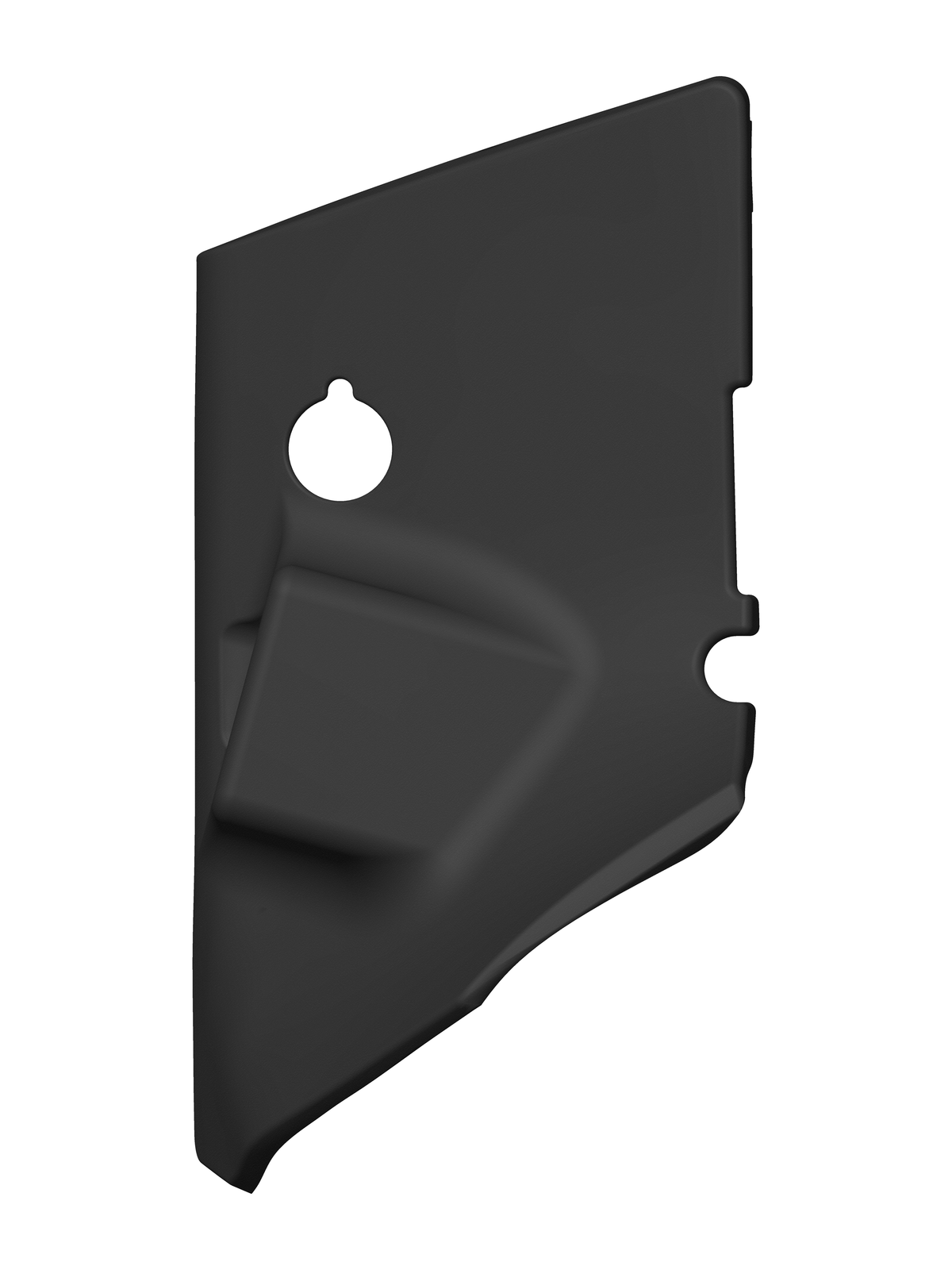

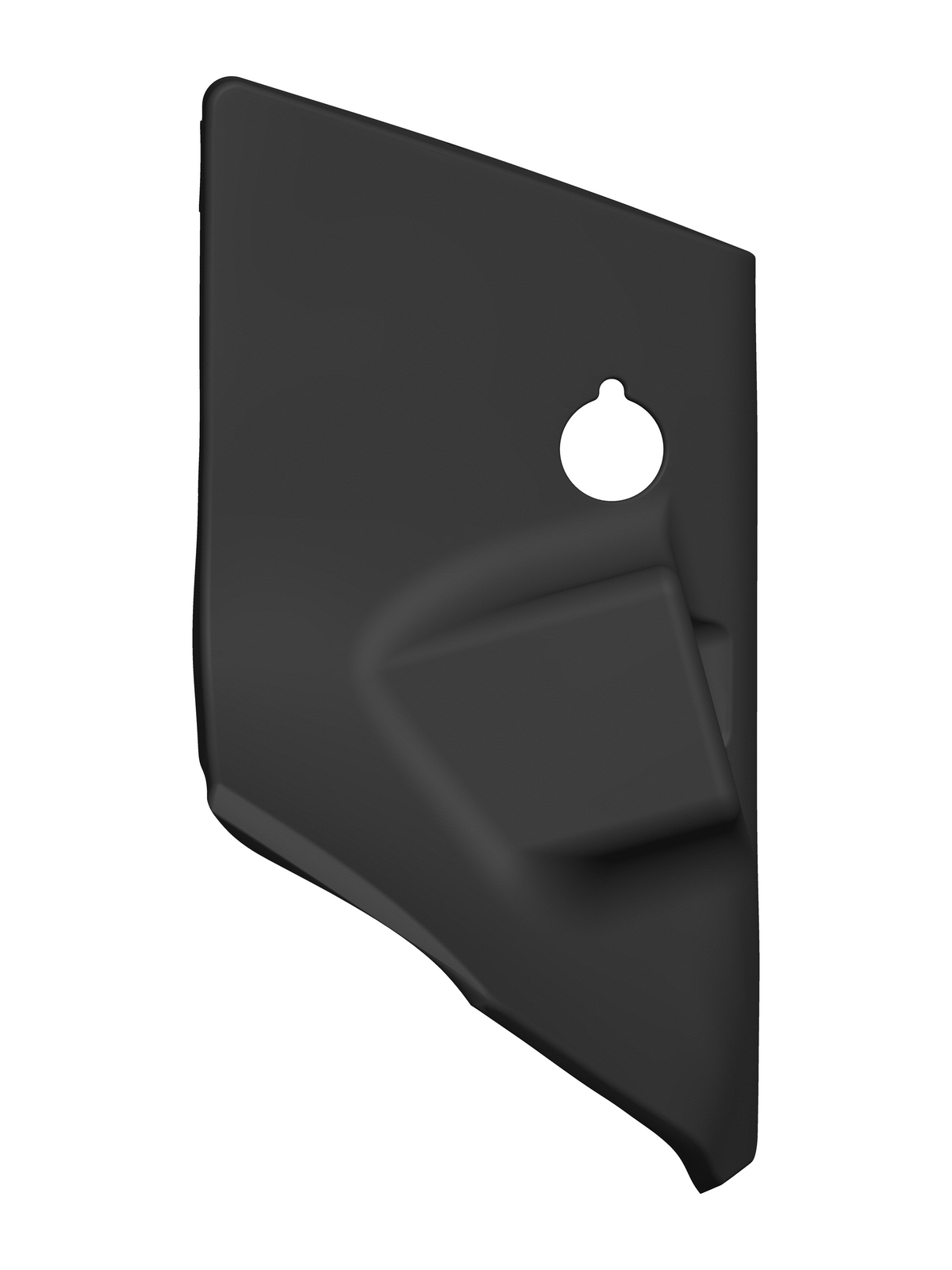

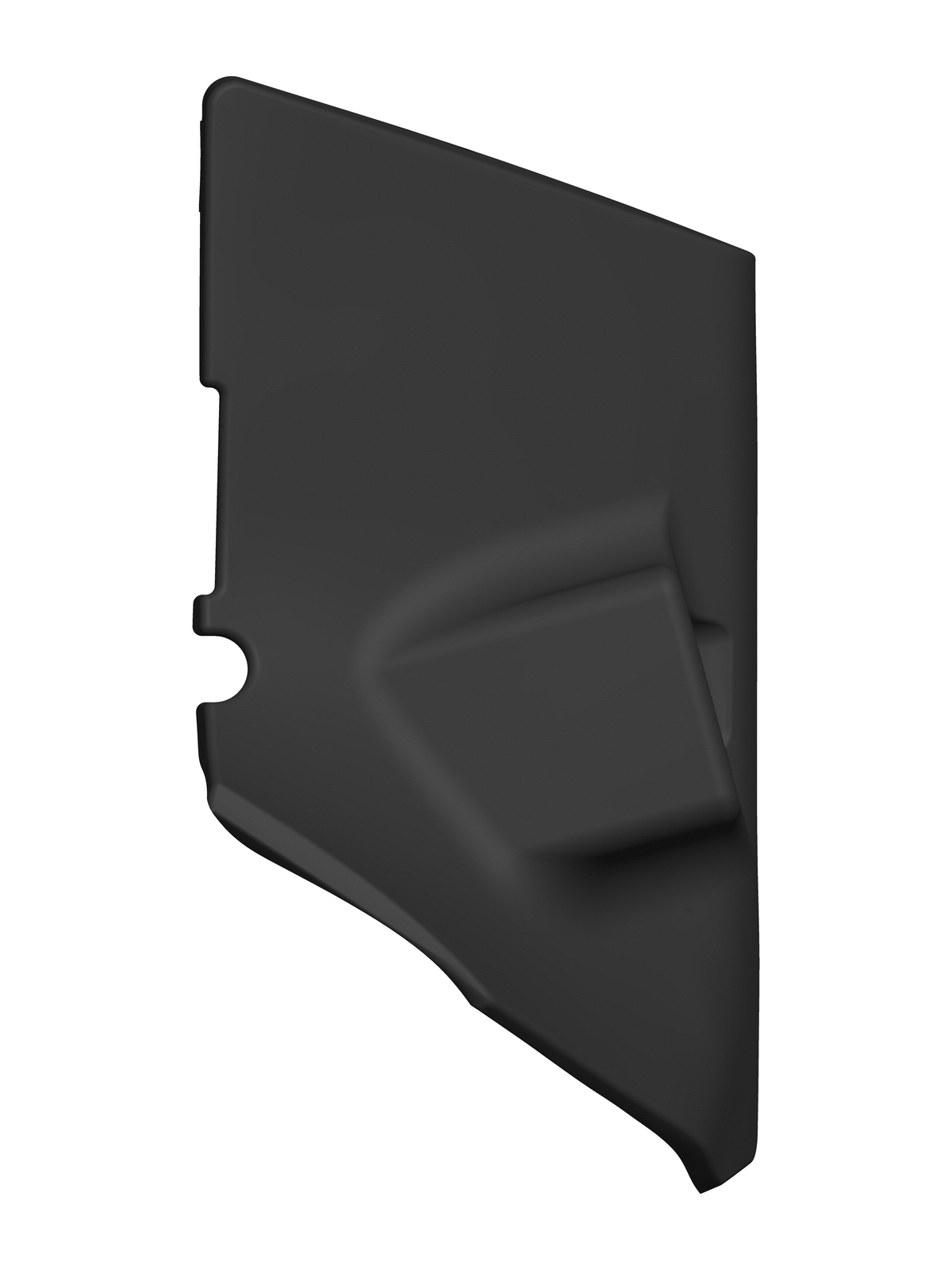

1. Vehicle side
Choose the physical left or right side of the FJ Cruiser. Vehicle left/right is viewed while sitting in the vehicle and facing forward.

2. Antenna opening
Choose Antenna opening only when the physical cowl side you are ordering needs the OEM antenna opening. Otherwise choose No antenna opening. We do not infer this from LHD/RHD or country.

3. Ditch-light bracket clearance
Choose bracket clearance only if you are keeping a classic external ditch-light bracket mounted at the hood hinge on that same side. If no such bracket is installed, choose the standard / no-clearance geometry.

4. Finish
RAW / Unpainted: untreated raw 3D-printed ASA-CF surface. Customer preparation / finishing is required for a finished cosmetic appearance.
Primed & Sanded / Ready for Paint: surface prepared for your final paint.
OEM Paint Matched: finished to the paint code you provide with the order.

Baja Designs light is not included and must be purchased separately.

Toyota FJ Cruiser Paint Code Examples

040 — Super White
058 — Iceberg / White
1D4 — Titanium Metallic / Silver Metallic
1F7 — Classic Silver Metallic
1G3 — Magnetic Gray Metallic
1G6 — Silver Fresco Metallic / Gray Metallic
1H5 — Cement Gray Metallic
202 — Black
211 — Black Diamond Mica / Black Diamond Pearl
3L5 — Radiant Red
3P2 — Black Cherry Pearl
3R8 — Brick Red
4U0 — Sandstorm
4V6 — Quicksand / New Beige
4W2 — Magma
5A3 — Sun Fusion
6V7 — Army Green
8R8 — Light Blue Mica
8T0 — Blazing Blue Metallic
8T6 — Voodoo Blue
8W2 — Cavalry Blue / Grayish Blue
8X0 — Heritage Blue / Smoky Blue

Please verify your Toyota OEM paint code on the vehicle before ordering.

Technical Specifications

Material: Carbon-fiber-reinforced Acrylonitrile Styrene Acrylate (ASA-CF), selected for UV resistance, heat resistance and exterior automotive applications. Vehicle Application: Toyota FJ Cruiser Light Compatibility: Baja Designs S1 Recommended Lens: Baja Designs S1 Work Scene Lens S1 Orientation: 15° Angled LED Light Included: No — Baja Designs S1 light must be purchased separately. Finish Options: RAW / Unpainted — No surface treatment is applied after the manufacturing process. Surface ridges and minor unevenness may be present. Customer post-processing is required for a finished cosmetic appearance: sanding, primer, sanding and paint. Primed & Sanded / Ready for Paint — surface prepared for final paint by the customer. OEM Paint Matched — finished to the vehicle paint code supplied with the order. Installation: Uses the original FJ Cruiser mounting concept. No drilling, cutting or permanent vehicle modification required.

Scope of Delivery

Each unit includes:
• 1 × vehicle-specific FJ Cruiser cowl housing
• Integrated mounting interface for the compatible Baja Designs light
• Mounting hardware / installation kit

Baja Designs light is NOT included and must be purchased separately.

Disclaimer

VNTR WORKS products are aftermarket OEM+ integration systems and are not affiliated with or endorsed by Toyota Motor Corporation or Baja Designs.

Baja Designs lights are not included with this product and must be purchased separately.

Professional installation is recommended. The customer is responsible for selecting the correct physical side, antenna configuration, bracket-clearance geometry, finish, proper installation and compliance with local regulations.

RAW / Unpainted parts require customer surface preparation / finishing for a finished cosmetic appearance.

Products are supplied according to the selected variant and finish. Product appearance and surface texture may vary slightly due to small-batch manufacturing and material characteristics.

Purpose-built OEM+ Baja Designs S1 integration for the Toyota FJ Cruiser.

The FJ CRSR Cowl replaces the original cowl panel with a vehicle-specific housing designed around the Baja Designs S1. Instead of adding a generic external light mount, the S1 is integrated directly into the cowl area for a clean, factory-inspired appearance.

15° angled configuration

This version uses dedicated cowl geometry that holds the Baja Designs S1 at a 15° angle. It is a physically different design from the straight 0° version.

Configure it for your FJ

Choose left or right vehicle side
Select antenna opening or antenna delete
Select with or without ditch-light bracket clearance
Choose Raw, Primed or OEM paint-matched finish

Key details

Vehicle-specific Toyota FJ Cruiser cowl housing
Integrated mounting interface for Baja Designs S1
Uses the original OEM mounting points
Integrated magnets, retainer bracket and M5 threaded insert for additional security
No drilling, cutting or permanent vehicle modification required
Approx. 3/10 mechanical installation difficulty

Scope of delivery

1 × vehicle-specific FJ Cruiser cowl housing
Integrated Baja Designs S1 mounting interface
Mounting hardware / installation kit

Important: Baja Designs S1 light is not included and must be purchased separately.

Lens recommendation: VNTR WORKS recommends using the Baja Designs S1 Work Scene Lens for this cowl integration.

Electrical installation

The S1 mounts directly into the dedicated integration area. Wiring depends on your existing switch setup, auxiliary switch system or preferred wiring configuration and is not part of the VNTR WORKS cowl system. Please follow the instructions supplied with your Baja Designs lighting components. Professional installation is recommended if you are not familiar with vehicle wiring.
