FJ CRSR Utility Vent System
FJ CRSR Utility Vent System
VNTR WORKS
Couldn't load pickup availability
Integrated Components
Integrated Components
Switch Panel:
6-Gang
Throttle Controller:
9Drive Systems
Integration Type:
Flush-mounted OEM+ cockpit integration
Driver Orientation:
Integrated instruments are angled towards the pilot for optimal visibility and accessibility.
Technical Specifications
Technical Specifications
Scope of Delivery
Scope of Delivery

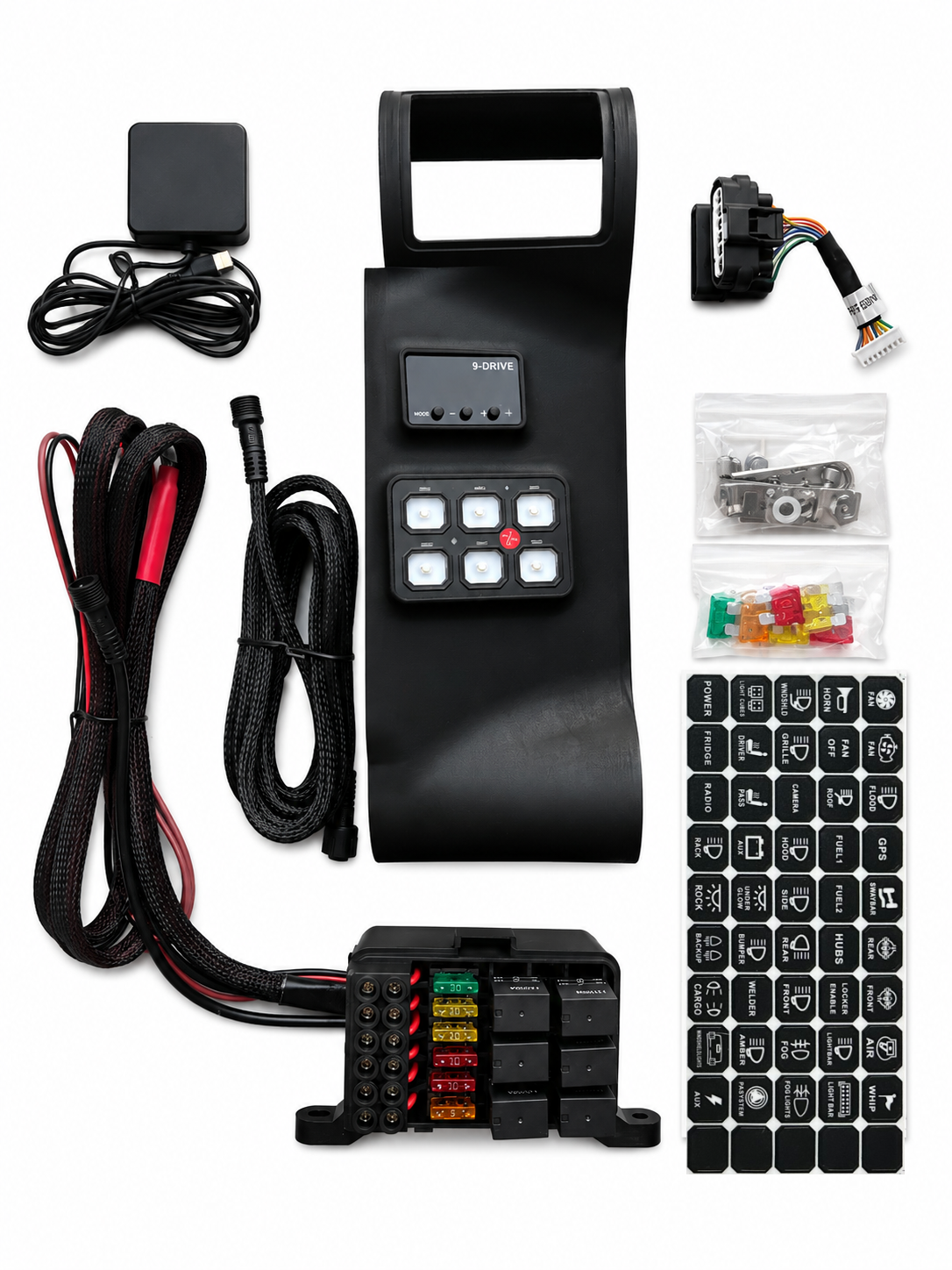

Each system includes:
• 1x Vehicle-specific VNTR WORKS vent cover
• 1x Integrated 6-gang light switch panel
• 1x Integrated throttle controller
• 1x Fuse box, supplied separately
• 1x Switch-panel wiring harness
• 1x Throttle-controller wiring harness
• 4x Vent-cover mounting clips
• Installation instructions
Disclaimer
Disclaimer
VNTR WORKS products are aftermarket OEM+ integration systems and are not affiliated with or endorsed by Toyota Motor Corporation.
Professional installation is recommended. The customer is responsible for verifying vehicle compatibility, proper installation, and compliance with local regulations prior to use.
Products are supplied according to the selected product variant and finish. Product appearance, surface texture, finish, and fitment may vary slightly due to small-batch manufacturing, material characteristics, and ongoing product refinement.
Certain products may not be legal for on-road use in all regions. The customer is responsible for compliance with local laws and regulations.
Designed as an OEM+ interior integration system for the Toyota FJ Cruiser.

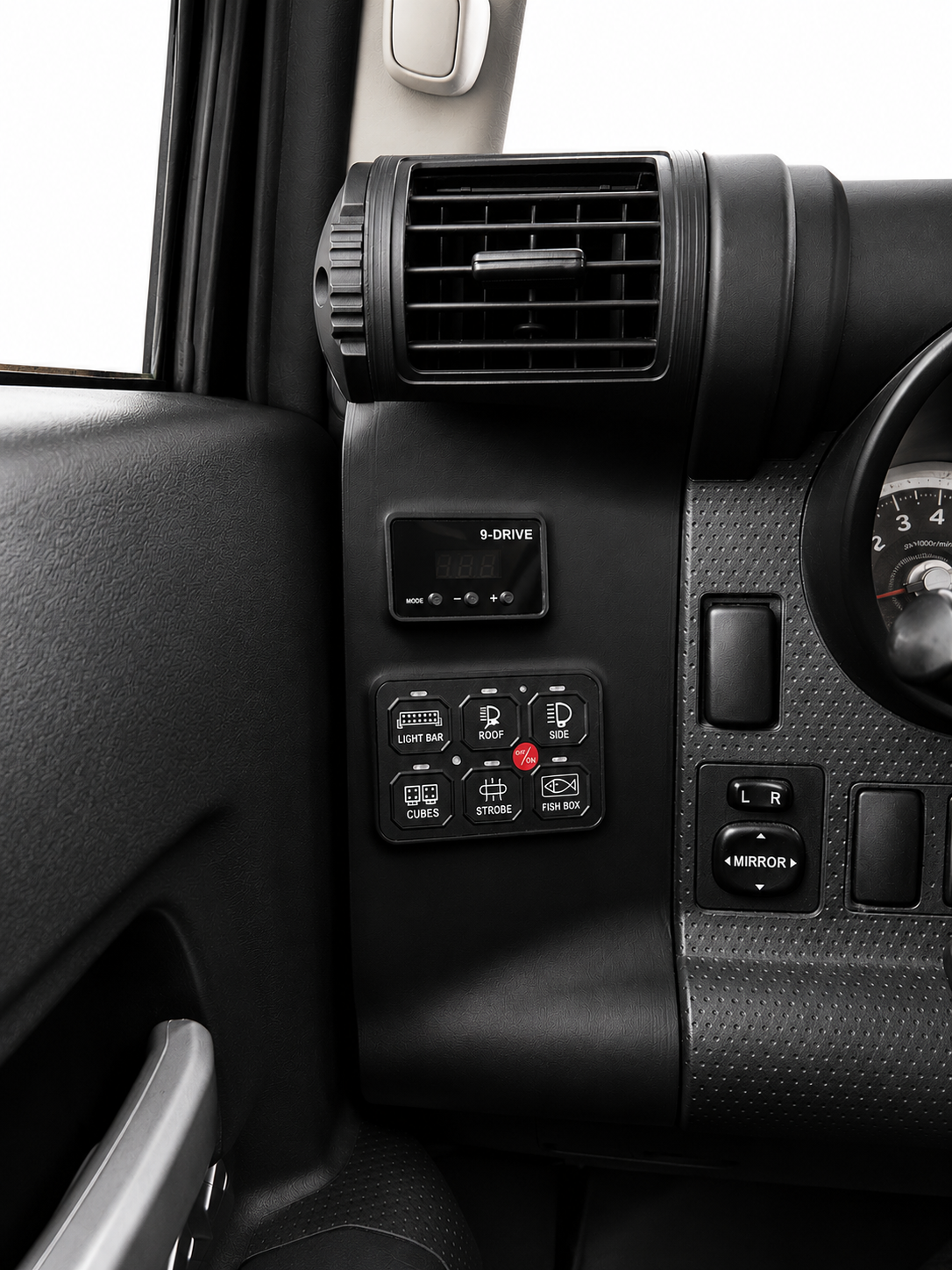

The FJ CRSR Utility Vent System replaces the original OEM vent cover and creates a clean, vehicle-specific mounting solution for auxiliary controls while maintaining the factory dashboard layout.
Designed as a vehicle-specific cockpit integration system — not a universal switch-panel mount. The system reuses the original factory air vent and integrates a 6-gang light switch panel and throttle controller into the existing dashboard position for a clean OEM+ appearance.
Vehicle Configuration
The system is supplied according to the selected vehicle configuration.
LHD vehicles receive the left-side vent cover configuration.
RHD vehicles receive the right-side vent cover configuration.
Installation & Wiring
The original OEM vent cover is removed from the vehicle. The factory air vent is then transferred from the OEM part into the VNTR WORKS replacement cover.
The replacement cover uses the original mounting points and installs back into the factory position. Four vent-cover mounting clips are included.

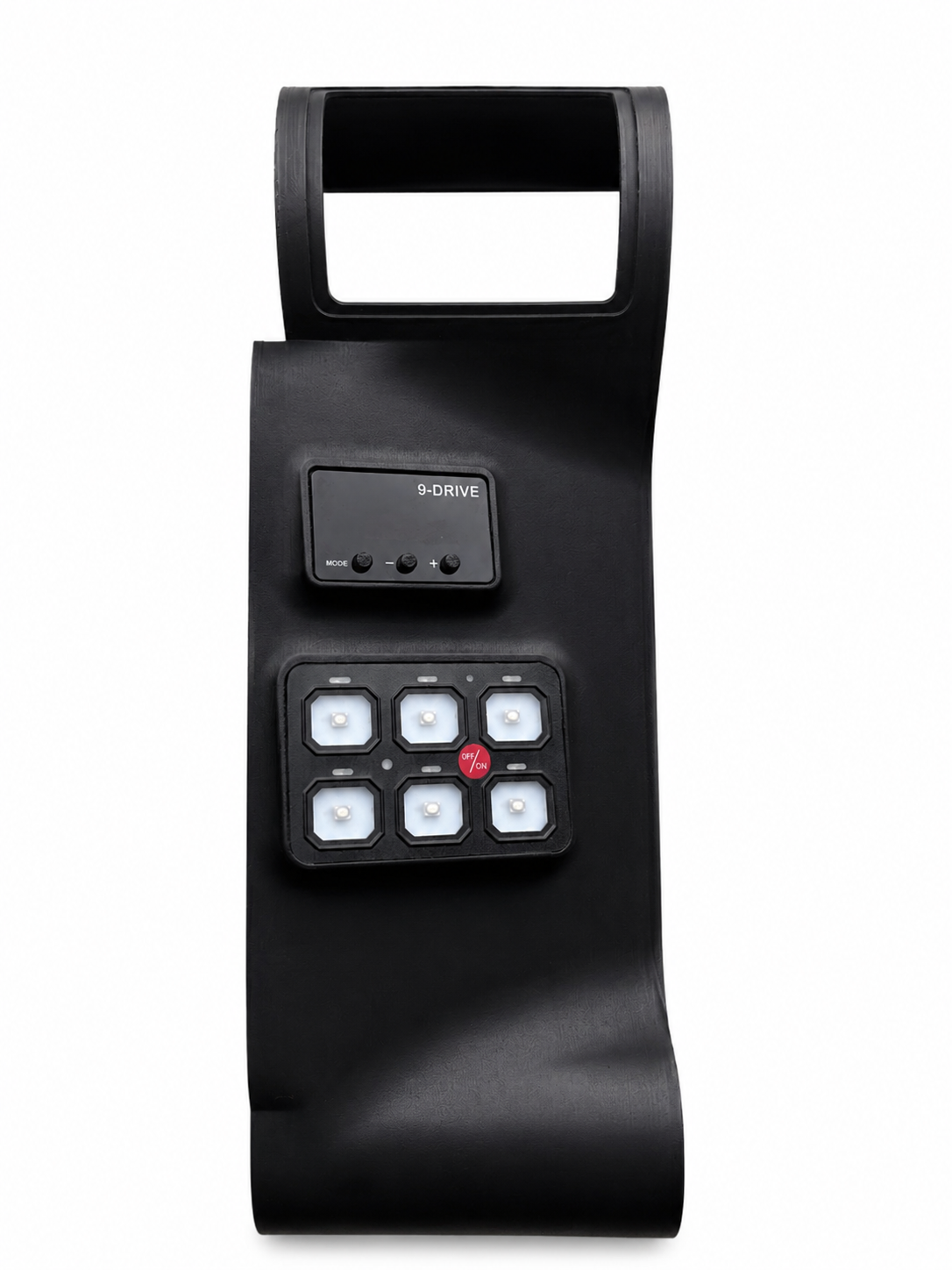

The 6-gang light switch panel and throttle controller are integrated into the VNTR WORKS vent cover.
The fuse box is included but supplied separately and is not integrated into the vent cover itself.
A switch-panel wiring harness and throttle-controller wiring harness are included.
Final electrical installation depends on the customer’s connected accessories, selected vehicle configuration, and preferred electrical setup. Professional electrical installation is recommended if the customer is not familiar with automotive electrical systems.
Installation difficulty is rated approximately 3/10.
Scope of Delivery
Each system includes:
• One vehicle-specific VNTR WORKS vent cover
• One integrated 6-gang light switch panel
• One integrated throttle controller
• One fuse box, supplied separately
• One switch-panel wiring harness
• One throttle-controller wiring harness
• Four vent-cover mounting clips
• Installation instructions
Is it plug and play?
Mechanically, the system is designed as a direct OEM-style replacement using the original mounting position. The factory air vent must be transferred from the original vent cover into the VNTR WORKS replacement cover.
The 6-gang light switch panel, throttle controller, fuse box, and required wiring harnesses are included.
The electrical installation can be completed by following the included instructions. Final wiring depends on the connected accessories and the customer’s preferred electrical configuration.
Professional installation is recommended if the customer is not familiar with vehicle wiring or automotive electrical systems.
