VNTR WORKS
Ships from the United Arab Emirates.
Applies to the cowl and hood light housings.
The standard VNTR WORKS vent cover finish is 1E7 Interior Silver. Change this entry only if a custom interior finish is required. This field does not apply to exterior cowl or hood parts.
Toyota FJ Cruiser Paint Code Examples
Toyota FJ Cruiser Paint Code Examples
040 — Super White
058 — Iceberg / White
1D4 — Titanium Metallic / Silver Metallic
1F7 — Classic Silver Metallic
1G3 — Magnetic Gray Metallic
1G6 — Silver Fresco Metallic / Gray Metallic
1H5 — Cement Gray Metallic
202 — Black
211 — Black Diamond Mica / Black Diamond Pearl
3L5 — Radiant Red
3P2 — Black Cherry Pearl
3R8 — Brick Red
4U0 — Sandstorm
4V6 — Quicksand / New Beige
4W2 — Magma
5A3 — Sun Fusion
6V7 — Army Green
8R8 — Light Blue Mica
8T0 — Blazing Blue Metallic
8T6 — Voodoo Blue
8W2 — Cavalry Blue / Grayish Blue
8X0 — Heritage Blue / Smoky Blue
Please verify your Toyota OEM paint code on the vehicle before ordering.
Couldn't load pickup availability
Technical Specifications
Technical Specifications
Scope of Delivery
Scope of Delivery

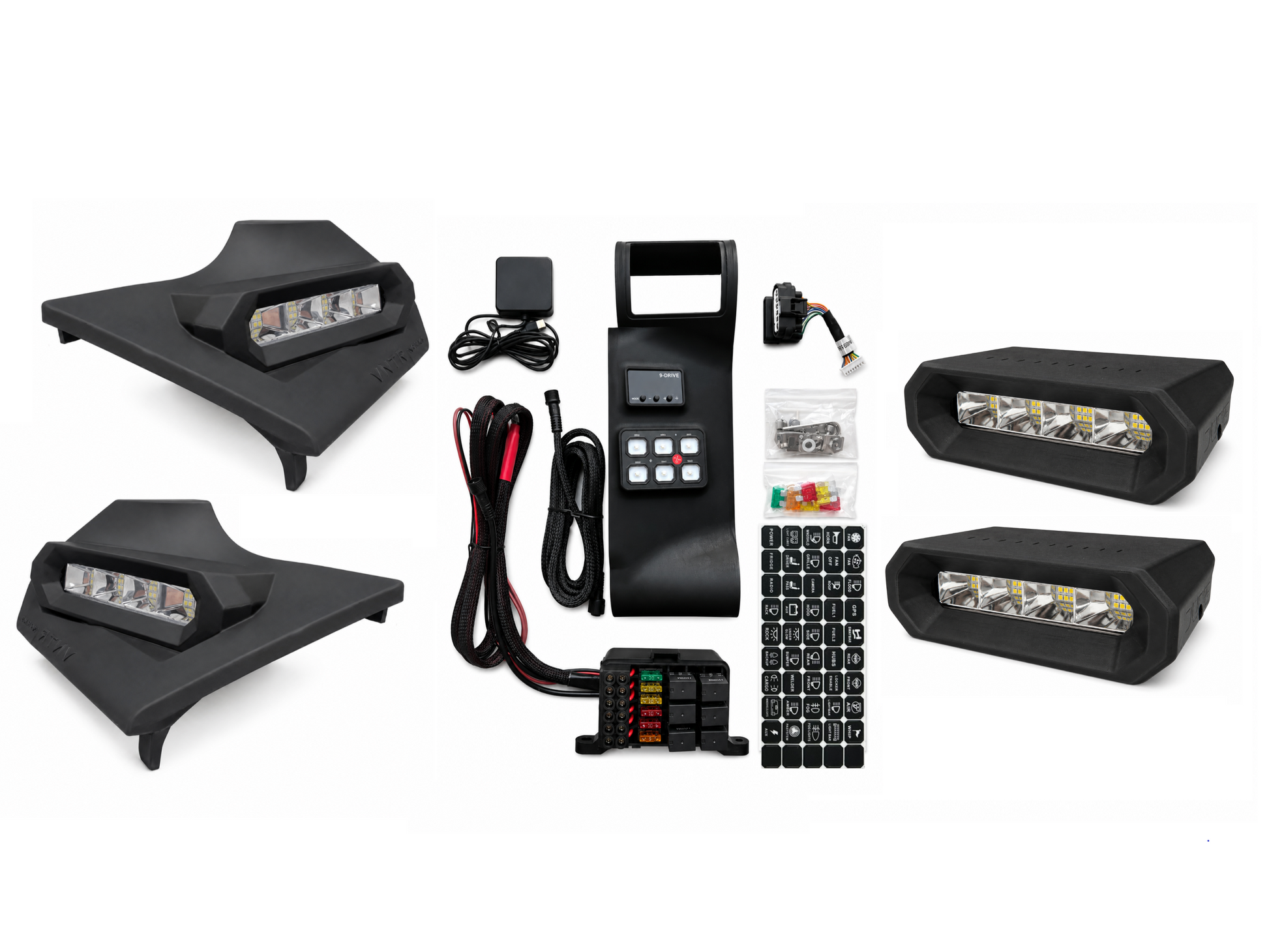

Each bundle includes:
• 2x Cowl light housings
• 2x Integrated cowl LED light bars
• 2x Cowl mounting hardware / installation kits
• 2x Hood light housings
• 2x Integrated hood LED units
• 8x M5 countersunk mounting screws
• 4x Male/female connector sets
• 1x Vehicle-specific VNTR WORKS vent cover
• 1x Integrated 6-gang light switch panel
• 1x Fuse box, supplied separately
• 1x Throttle controller
• 1x Switch-panel wiring harness
• 1x Throttle-controller wiring harness
• 4x Vent-cover mounting clips
• Installation instructions
Disclaimer
Disclaimer
VNTR WORKS products are aftermarket OEM+ integration systems and are not affiliated with or endorsed by Toyota Motor Corporation.
Professional installation is recommended. The customer is responsible for verifying vehicle compatibility, proper installation, and compliance with local regulations prior to use.
Products are supplied according to the selected product variant and finish. Product appearance, surface texture, finish, and fitment may vary slightly due to small-batch manufacturing, material characteristics, and ongoing product refinement.
Certain products may not be legal for on-road use in all regions. The customer is responsible for compliance with local laws and regulations.
Designed as a complete OEM+ integration package for the Toyota FJ Cruiser.

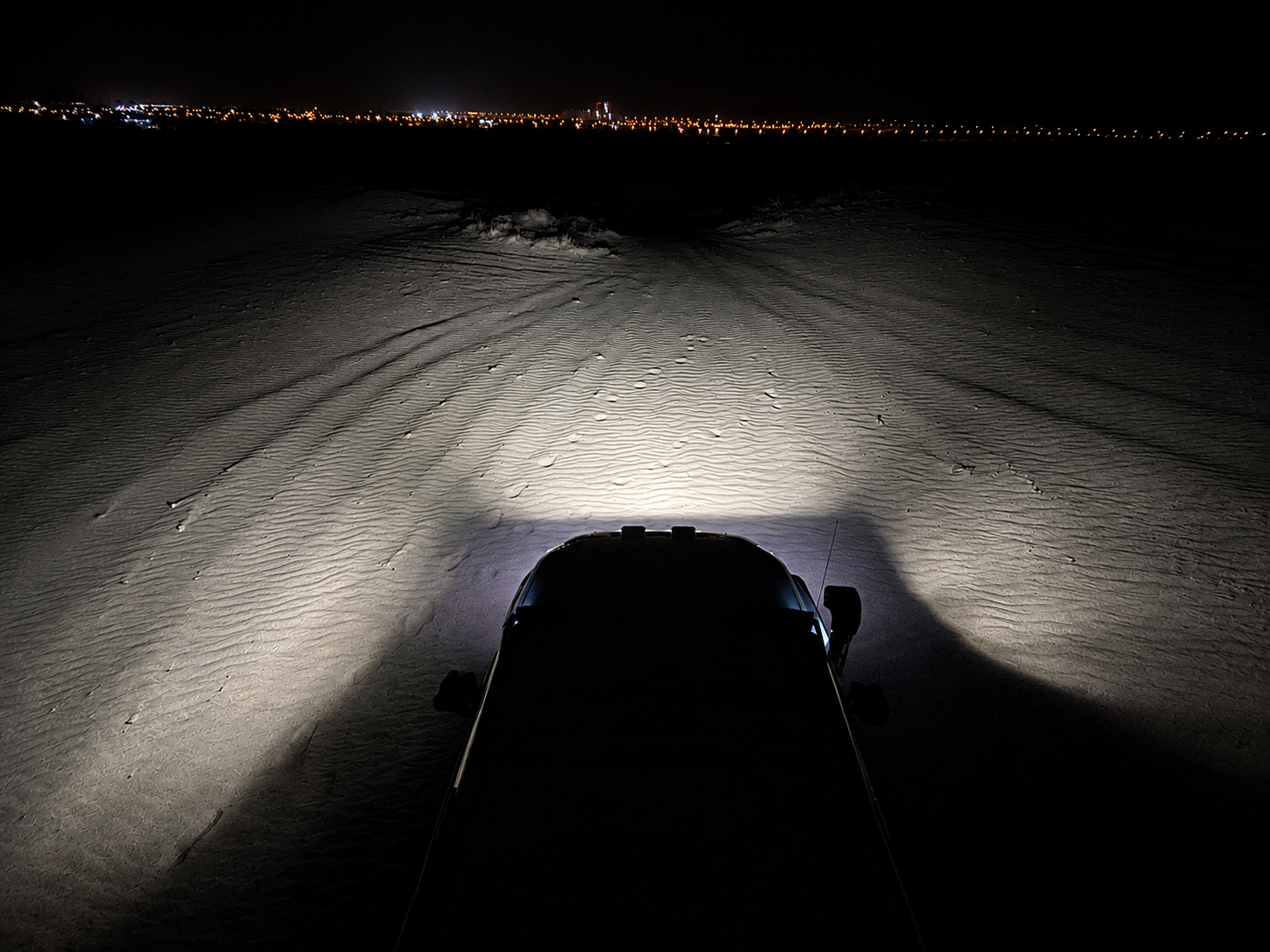

The VNTR WORKS Full FJ Integration Bundle combines peripheral side lighting, close-range hood illumination, a vehicle-specific interior switch panel integration, and throttle response control into one complete system.
Each component is designed around the original FJ Cruiser geometry and mounting concept to maintain a clean, integrated appearance instead of looking like a collection of generic universal accessories.
The bundle combines two cowl light housings, two integrated cowl LED light bars, two hood light housings, two integrated hood LED units, mounting hardware, four connector sets, the VNTR WORKS vent cover with integrated 6-gang light switch panel, and the included throttle controller.
Vehicle Configuration
The Full FJ Integration Bundle is supplied according to the selected vehicle configuration.

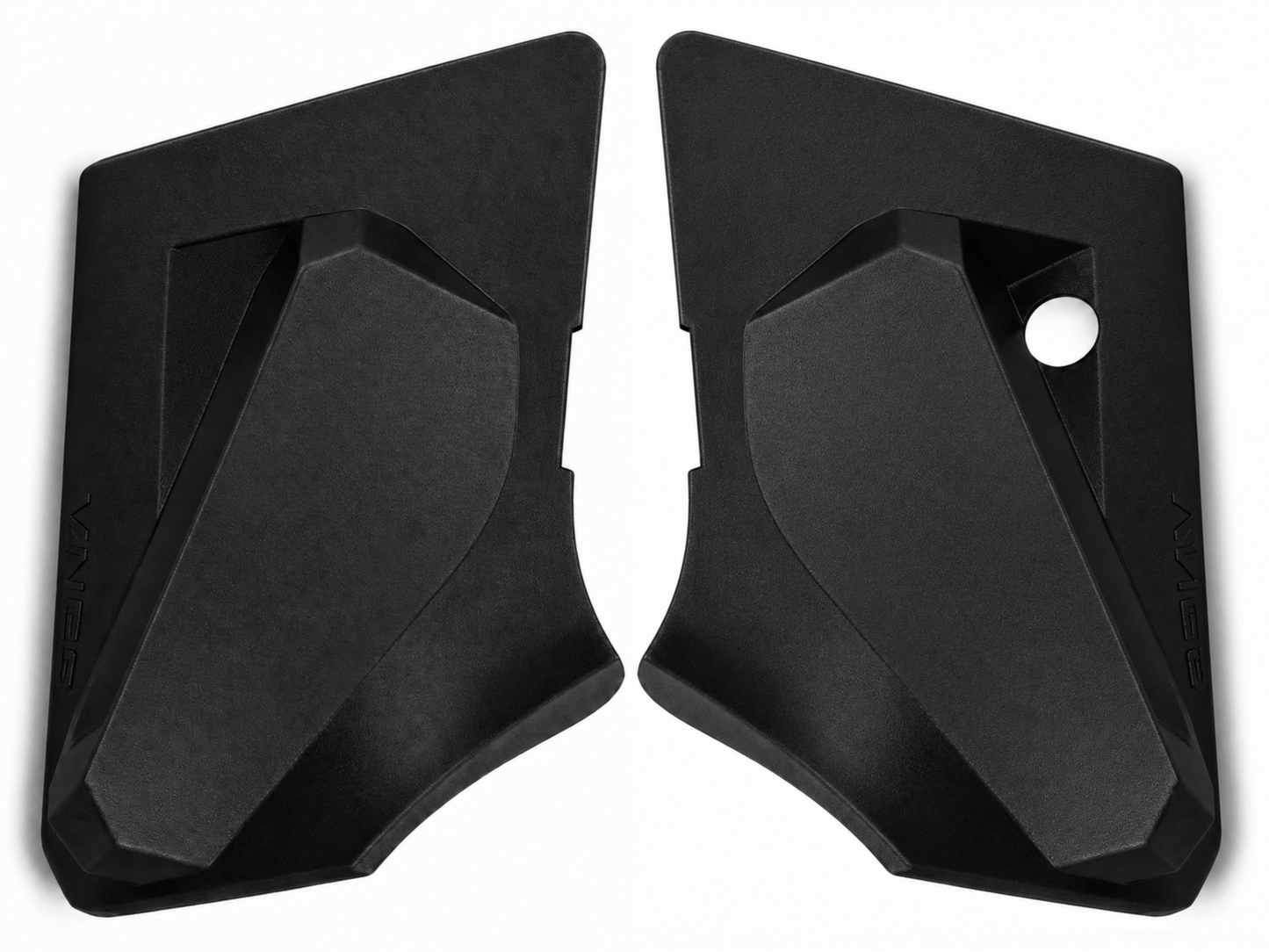

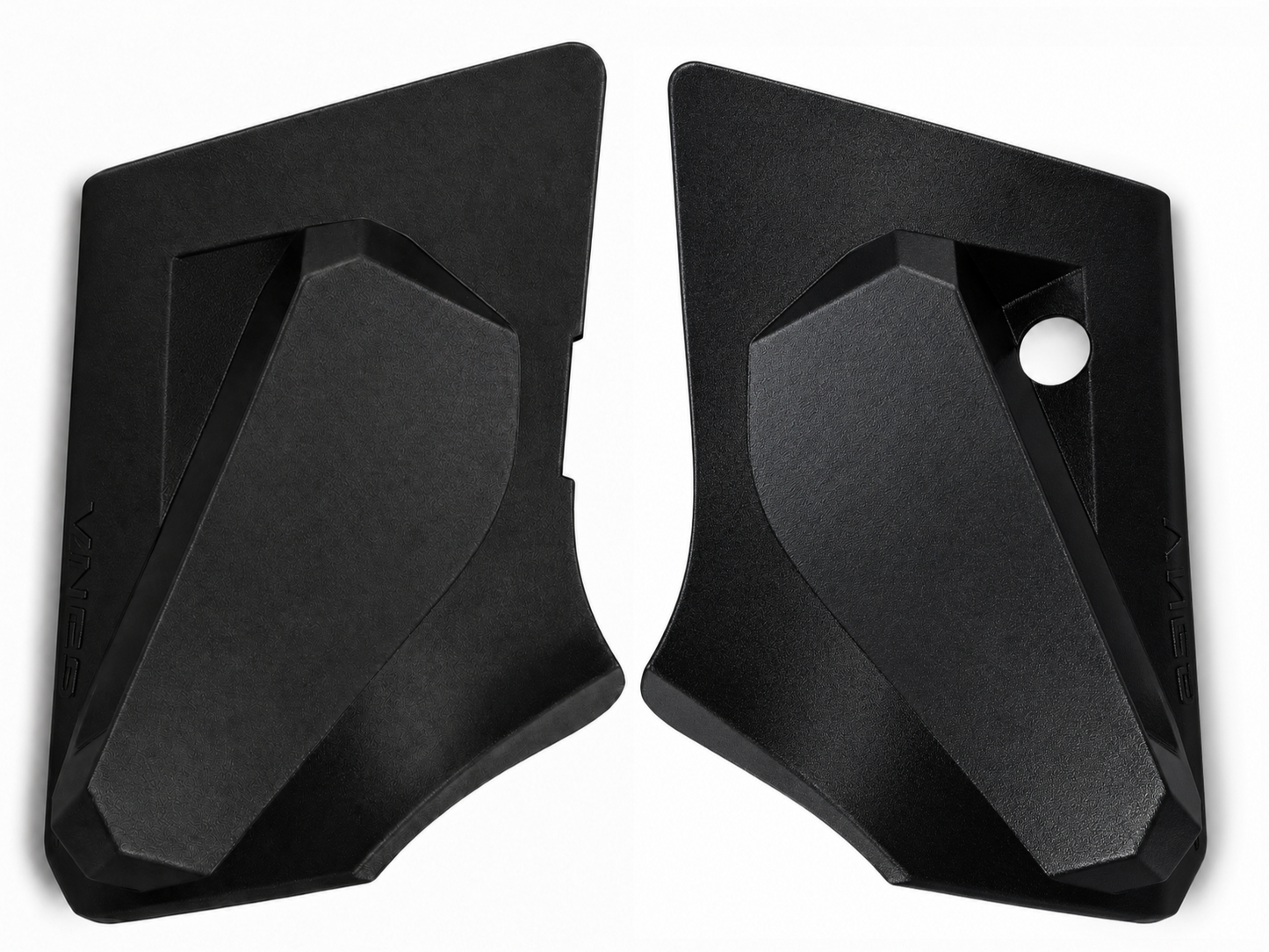

LHD vehicles receive the left-side vent cover configuration.

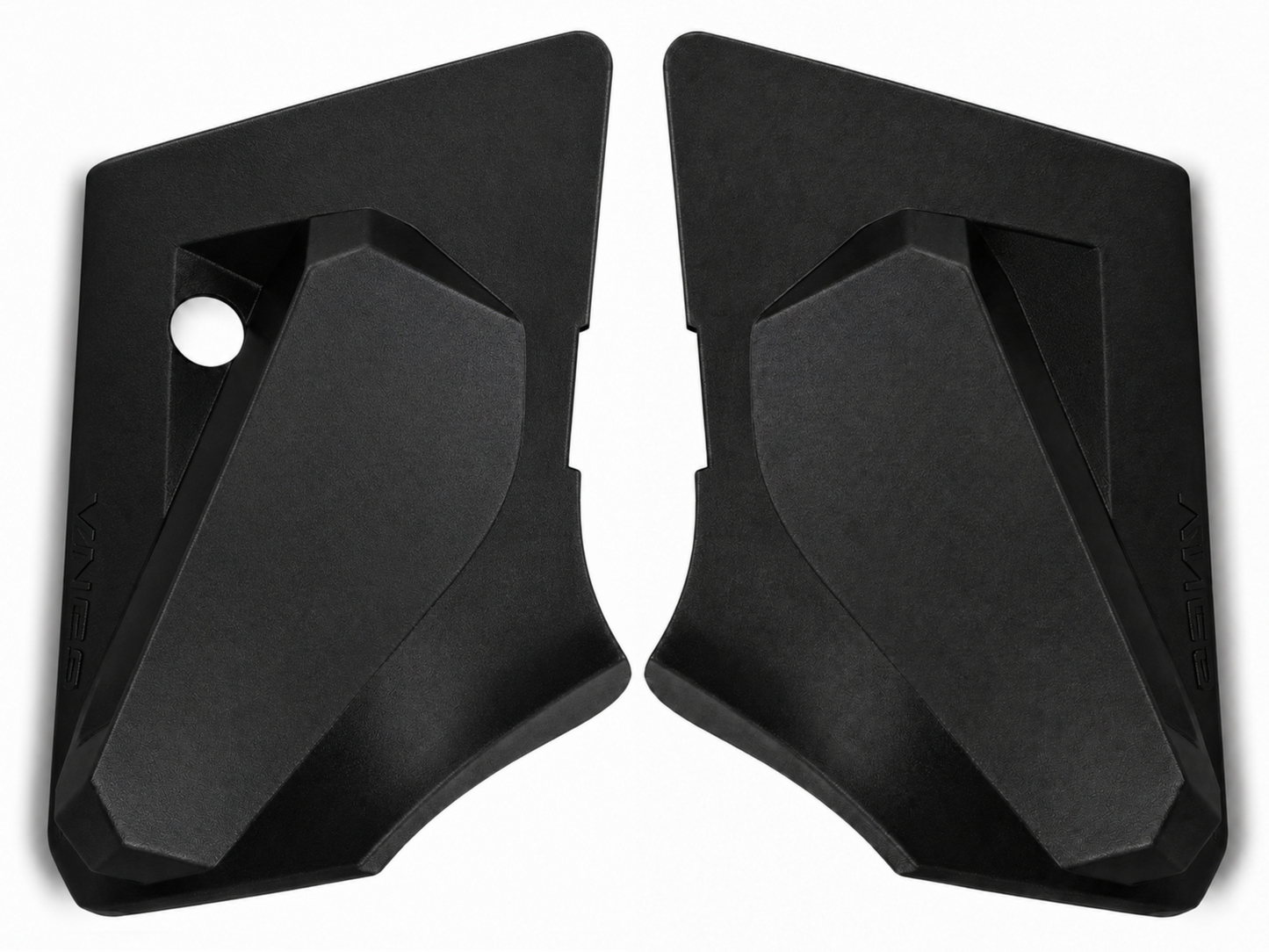

RHD vehicles receive the right-side vent cover configuration.

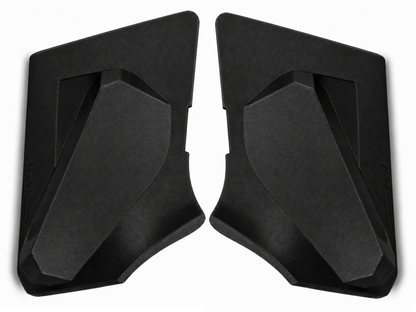

For Antenna Delete configurations, the customer must still select whether the vehicle is LHD or RHD so that the correct vent cover orientation can be supplied.
Installation & Wiring

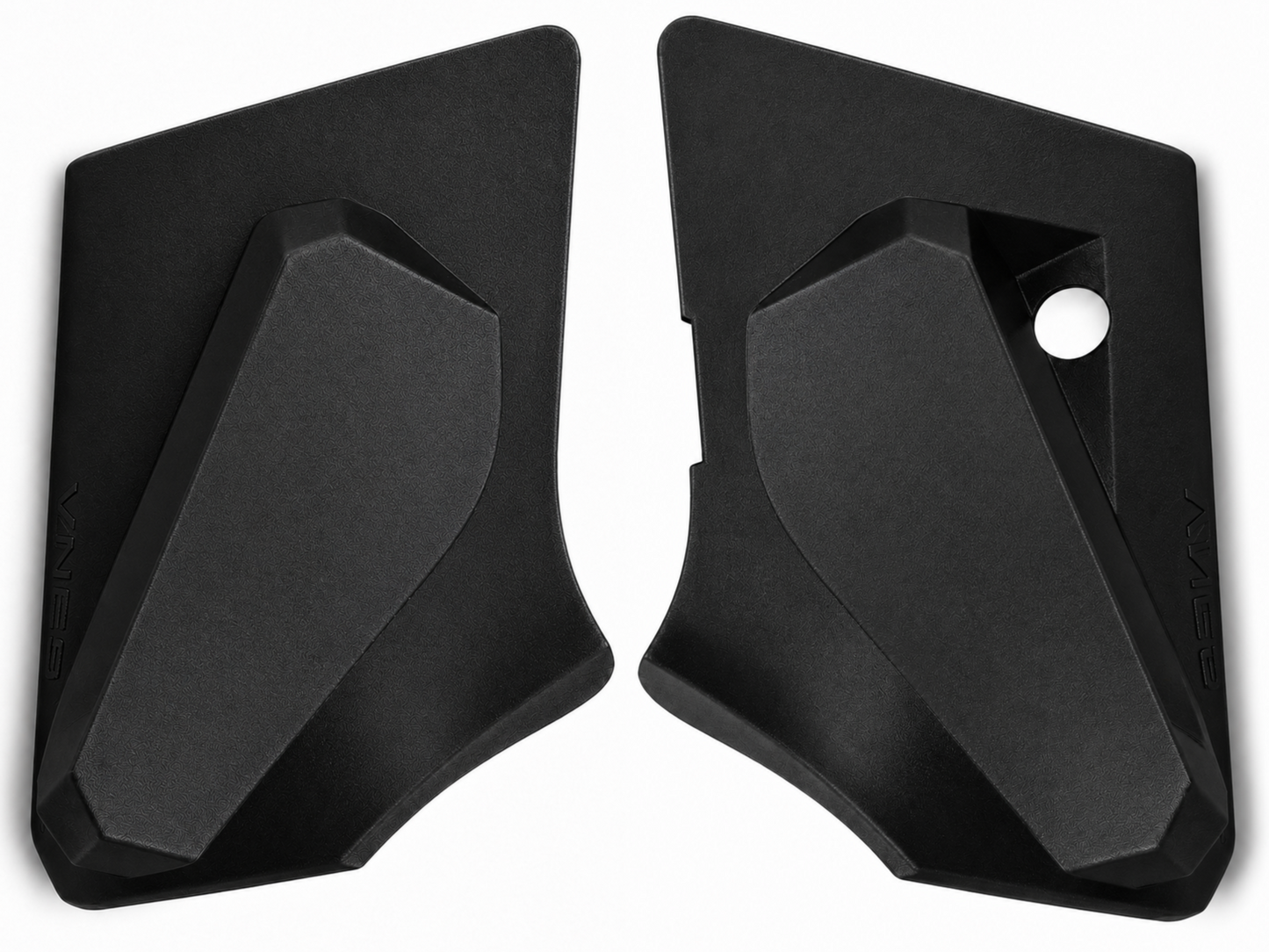

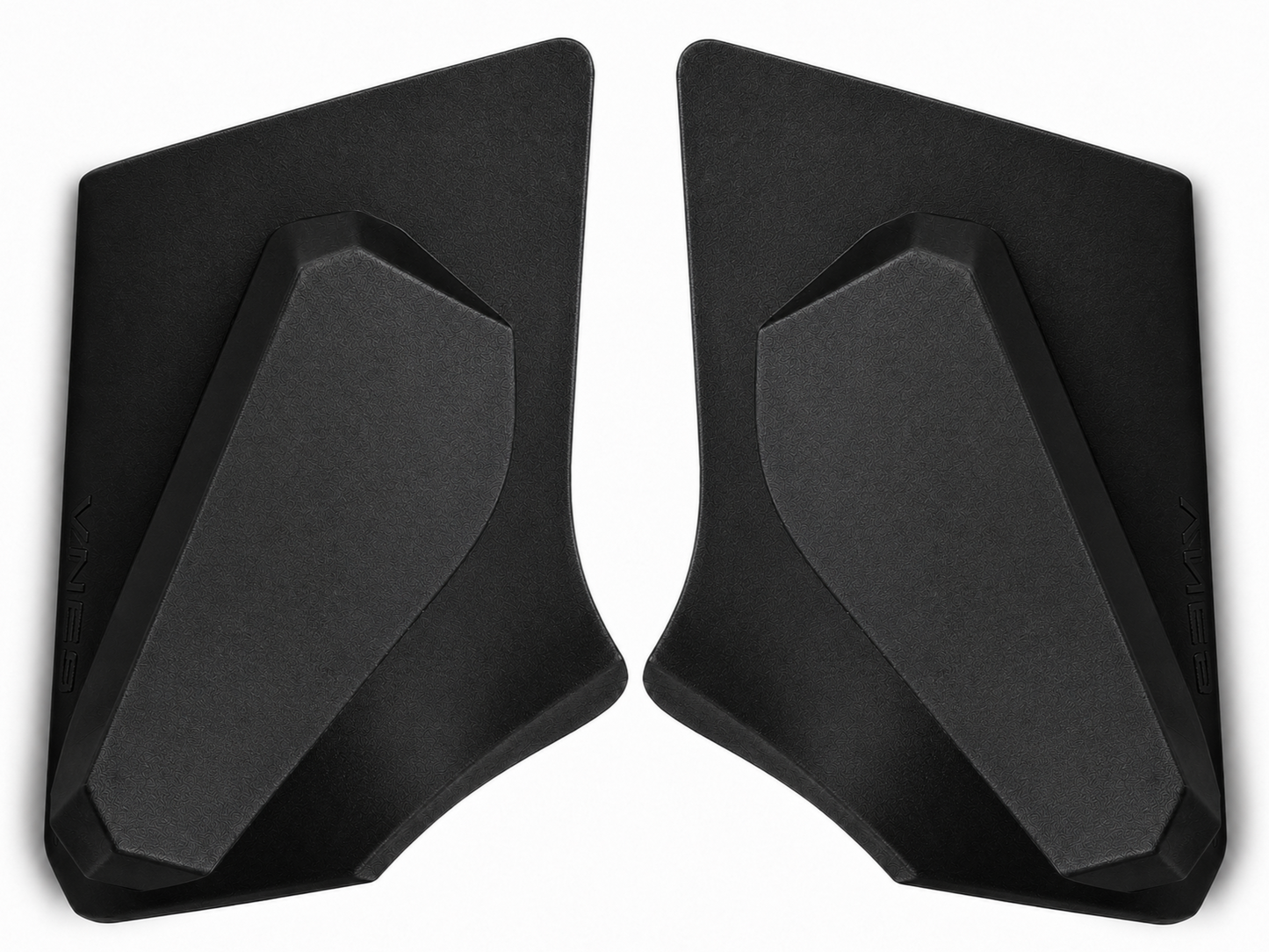

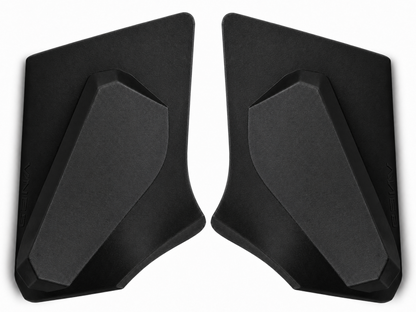

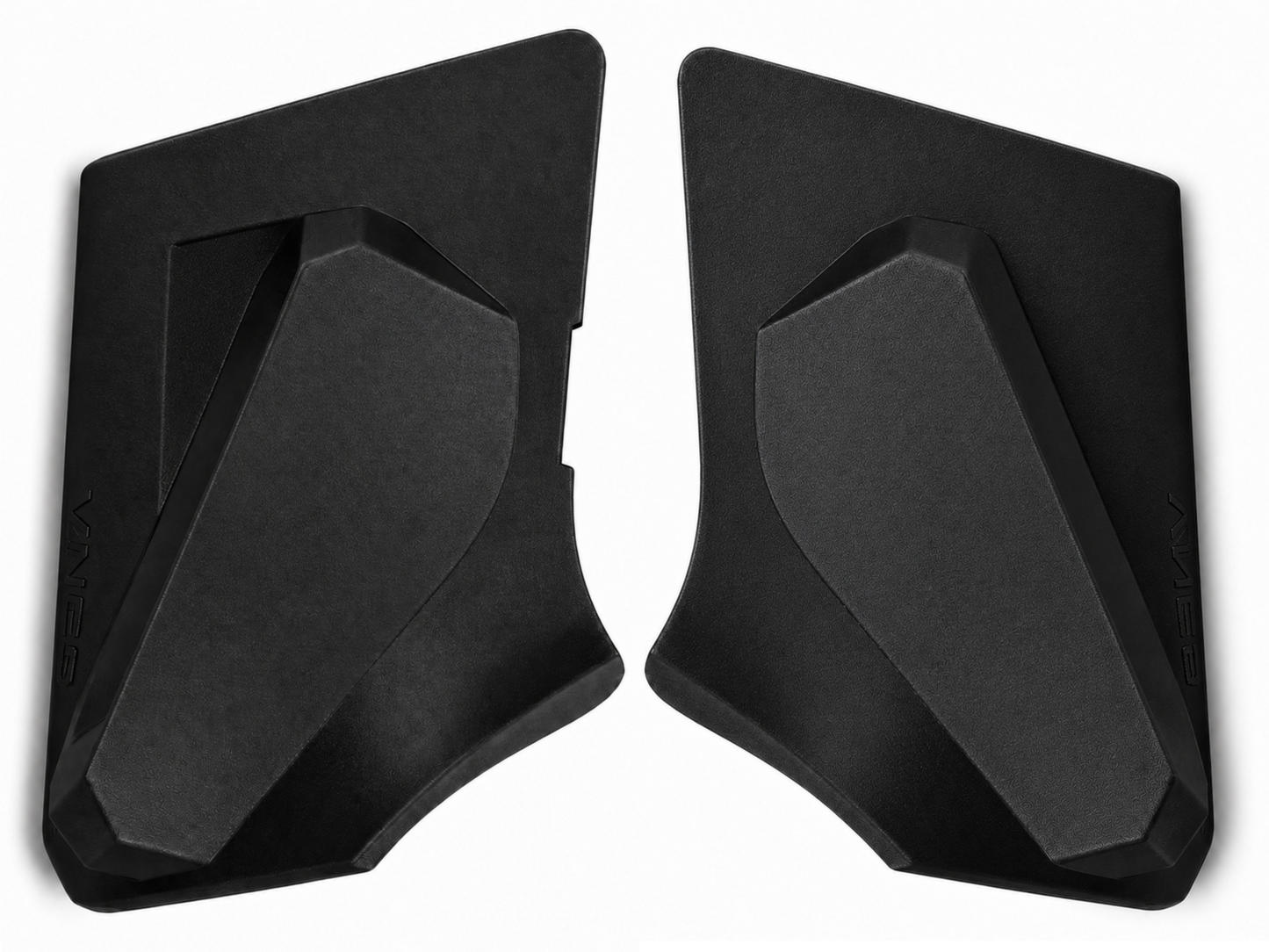

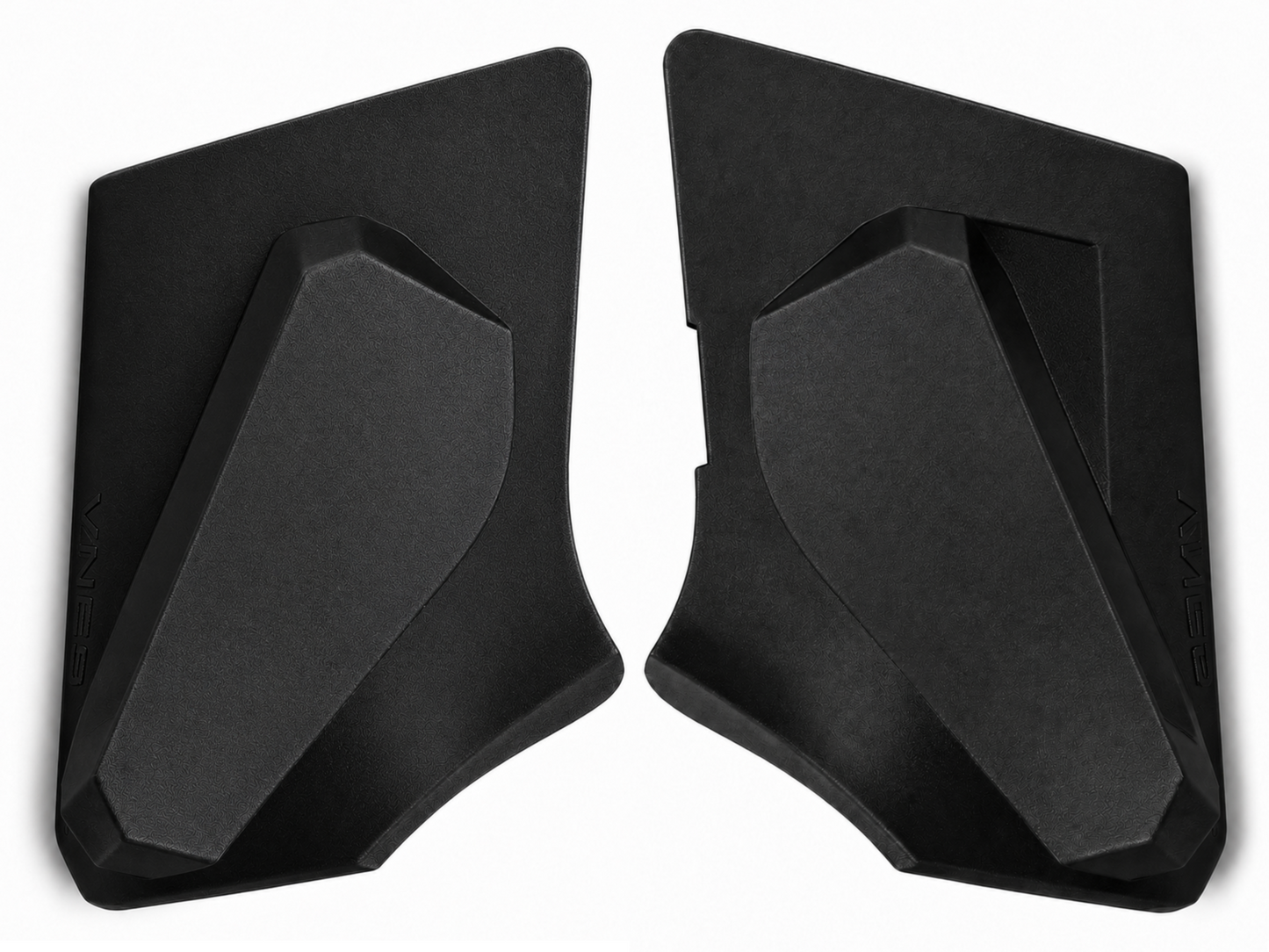

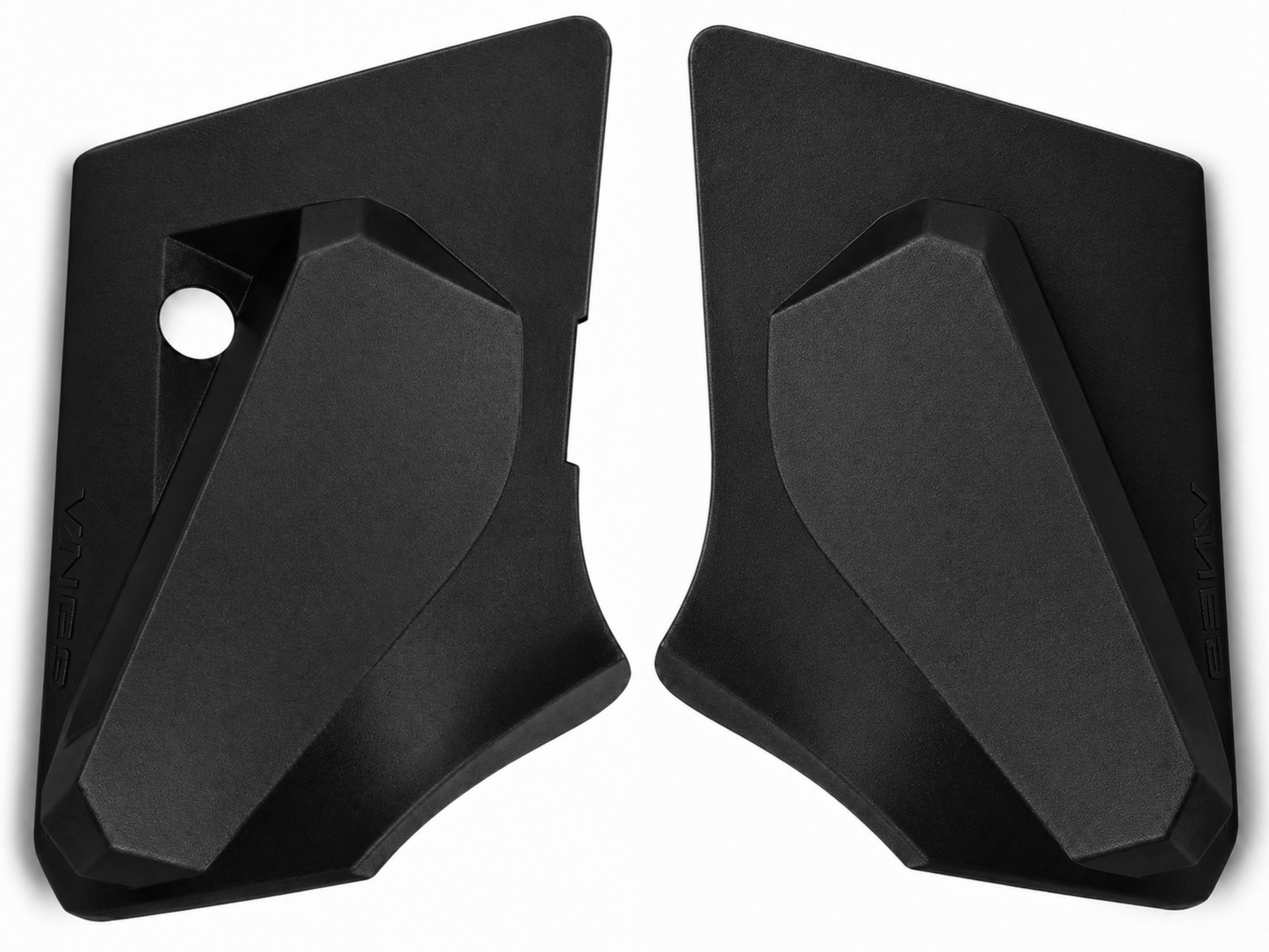

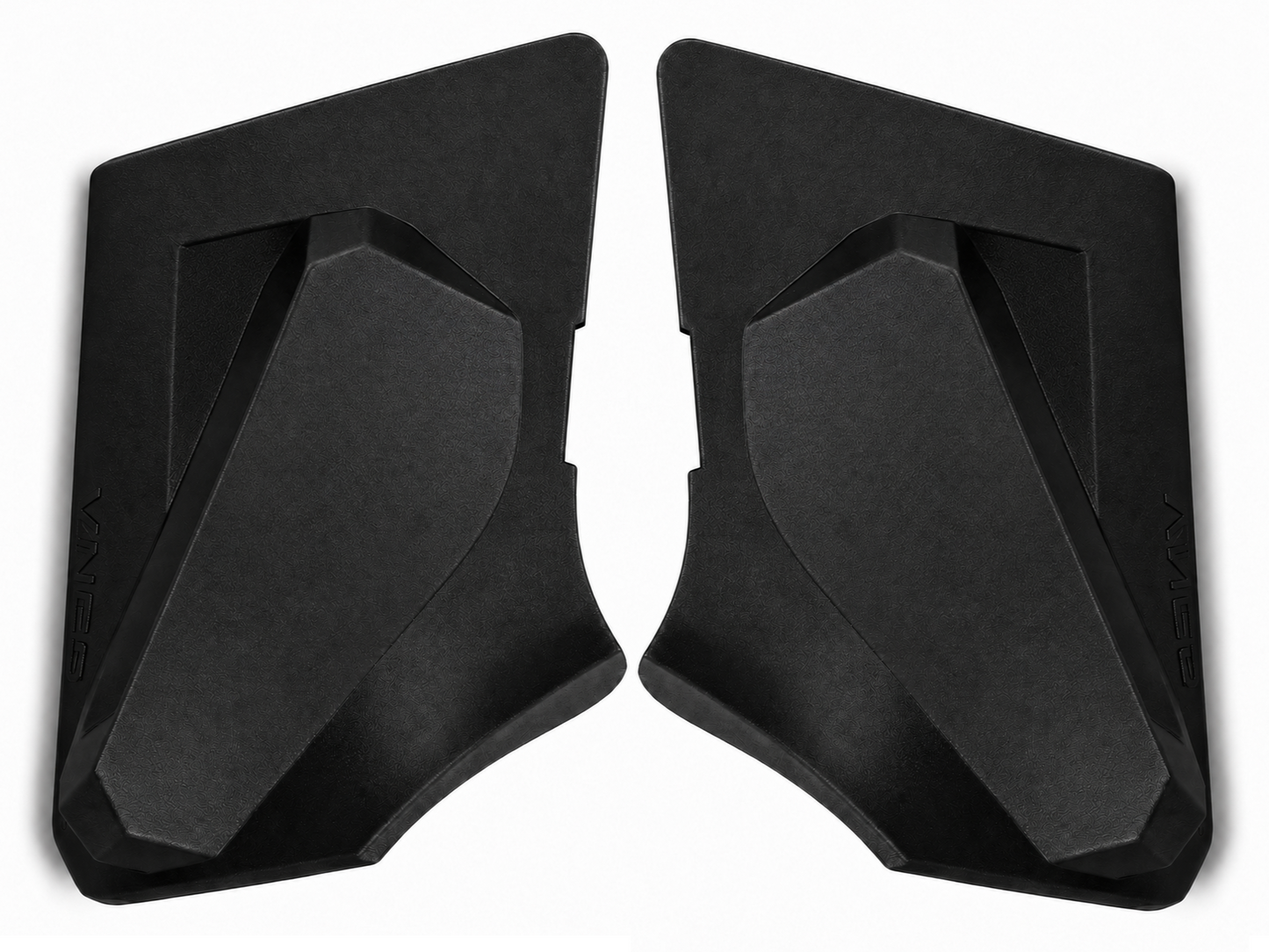

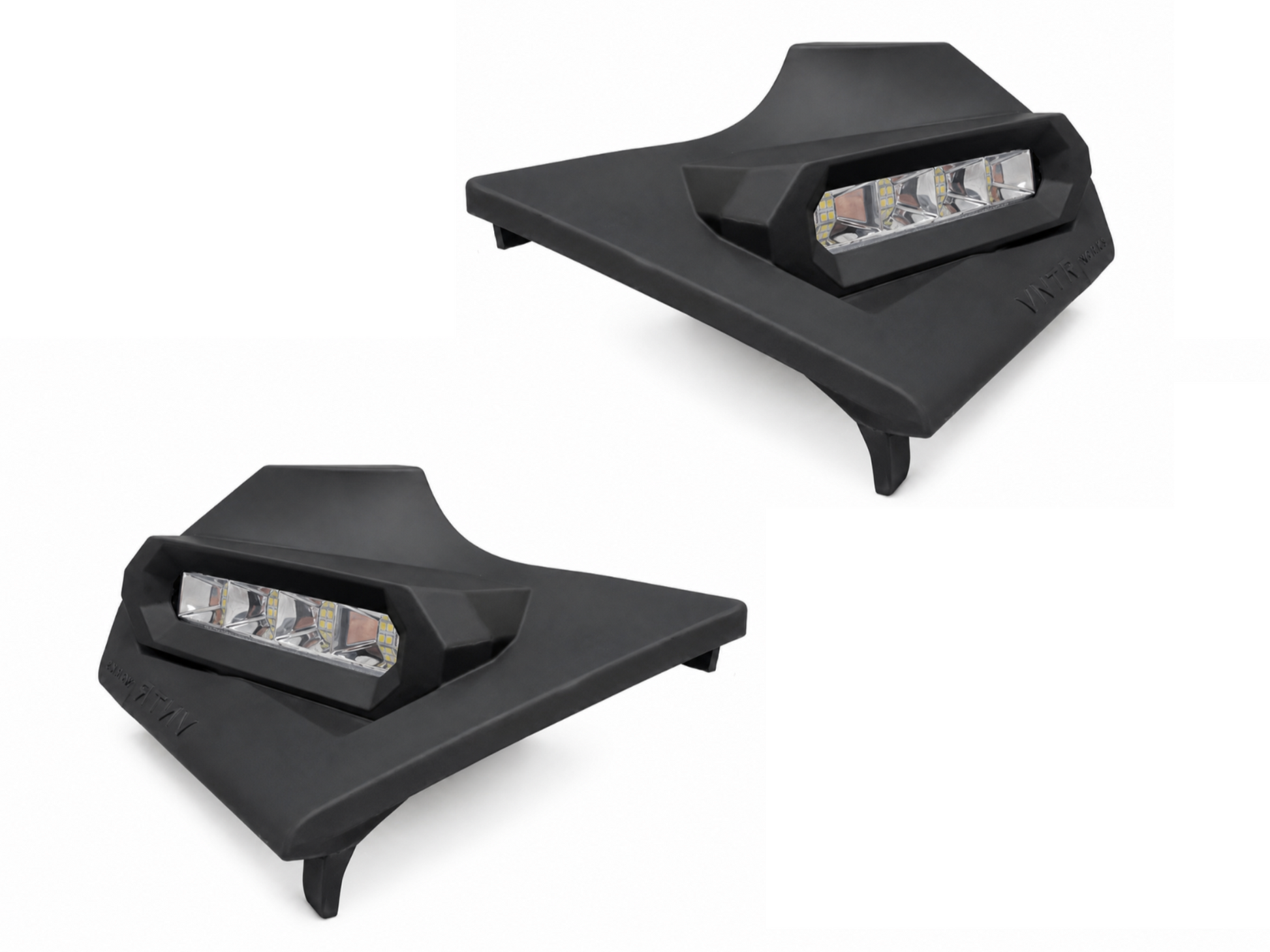

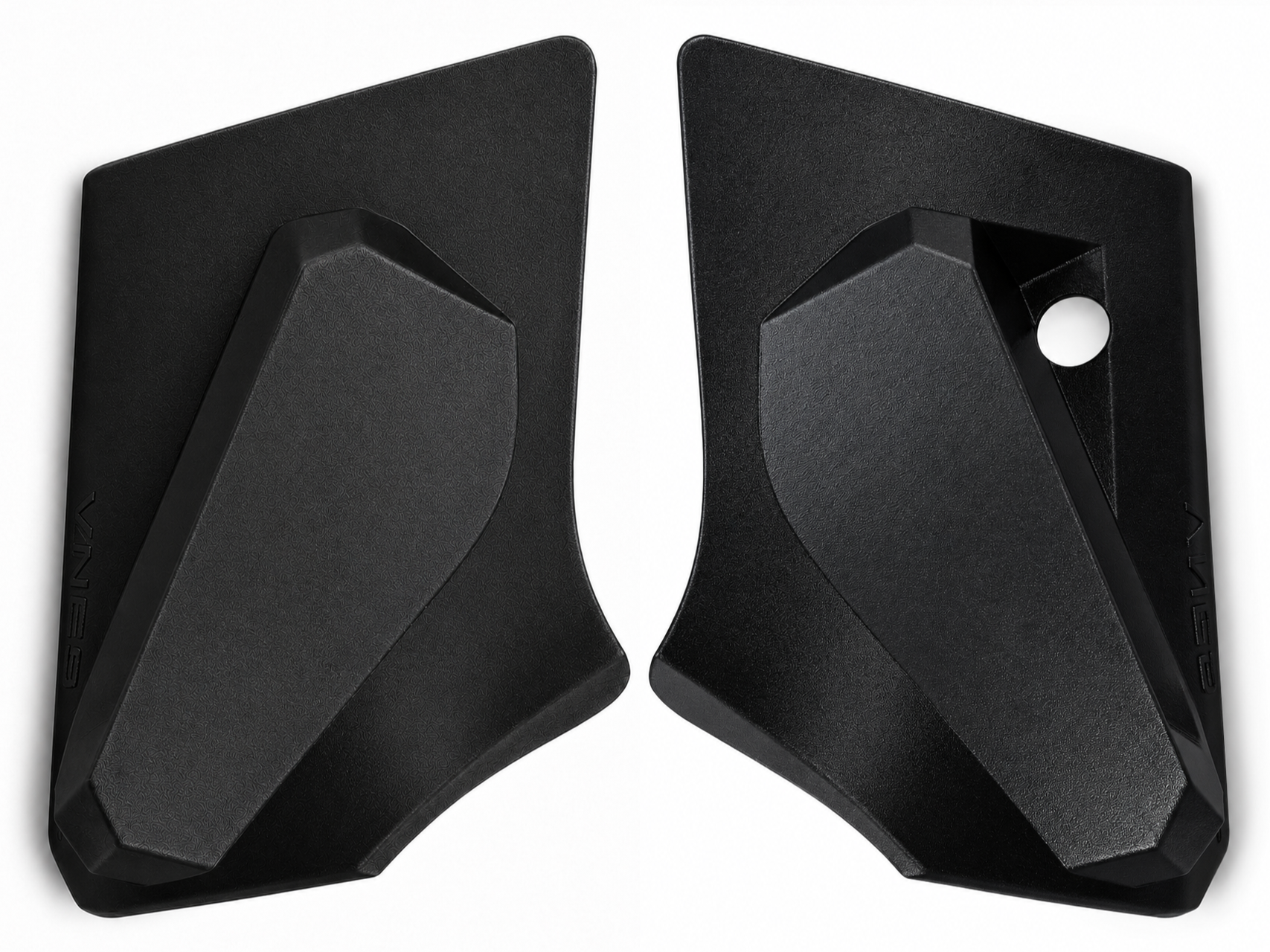

Cowl Light System

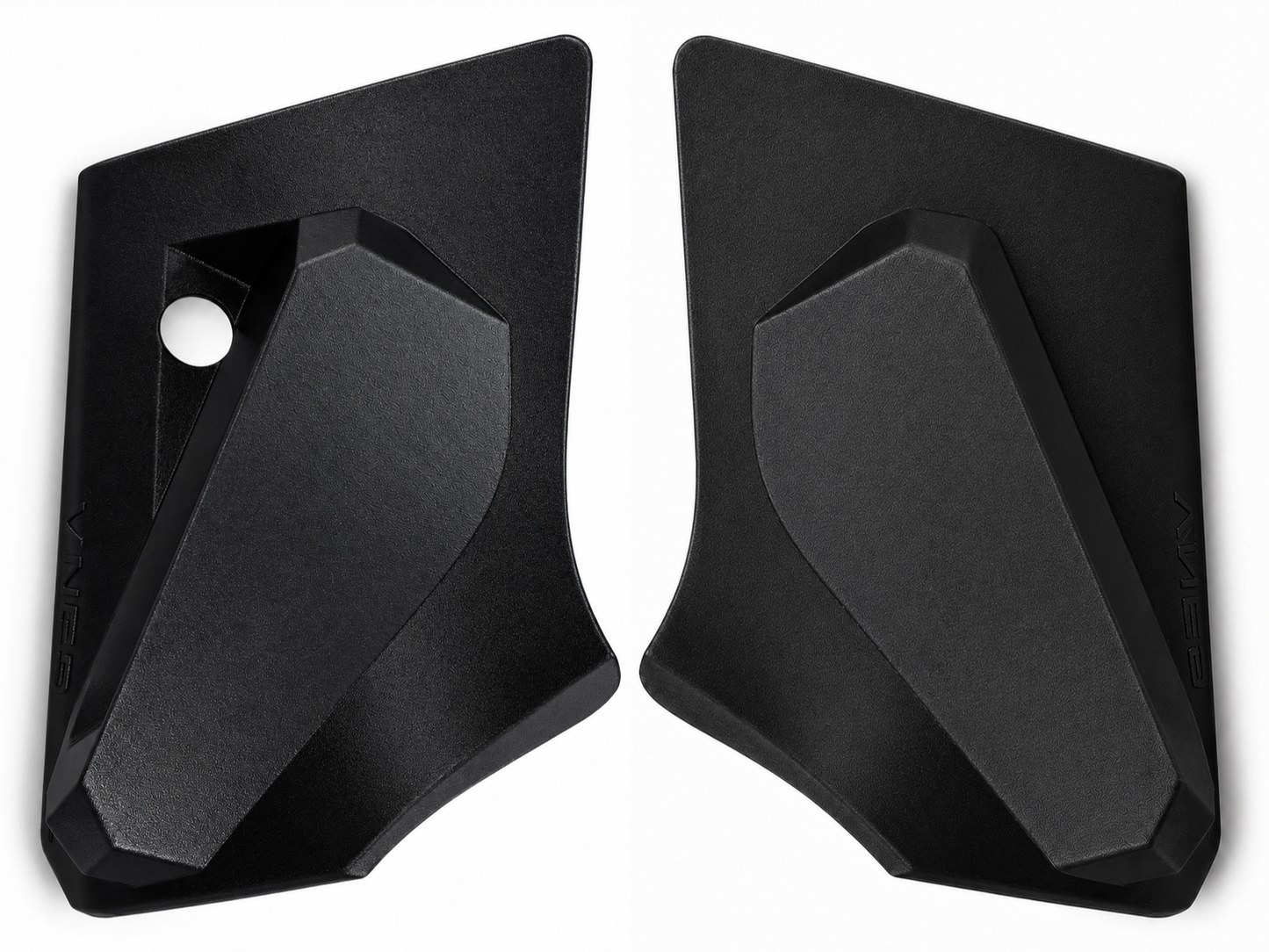

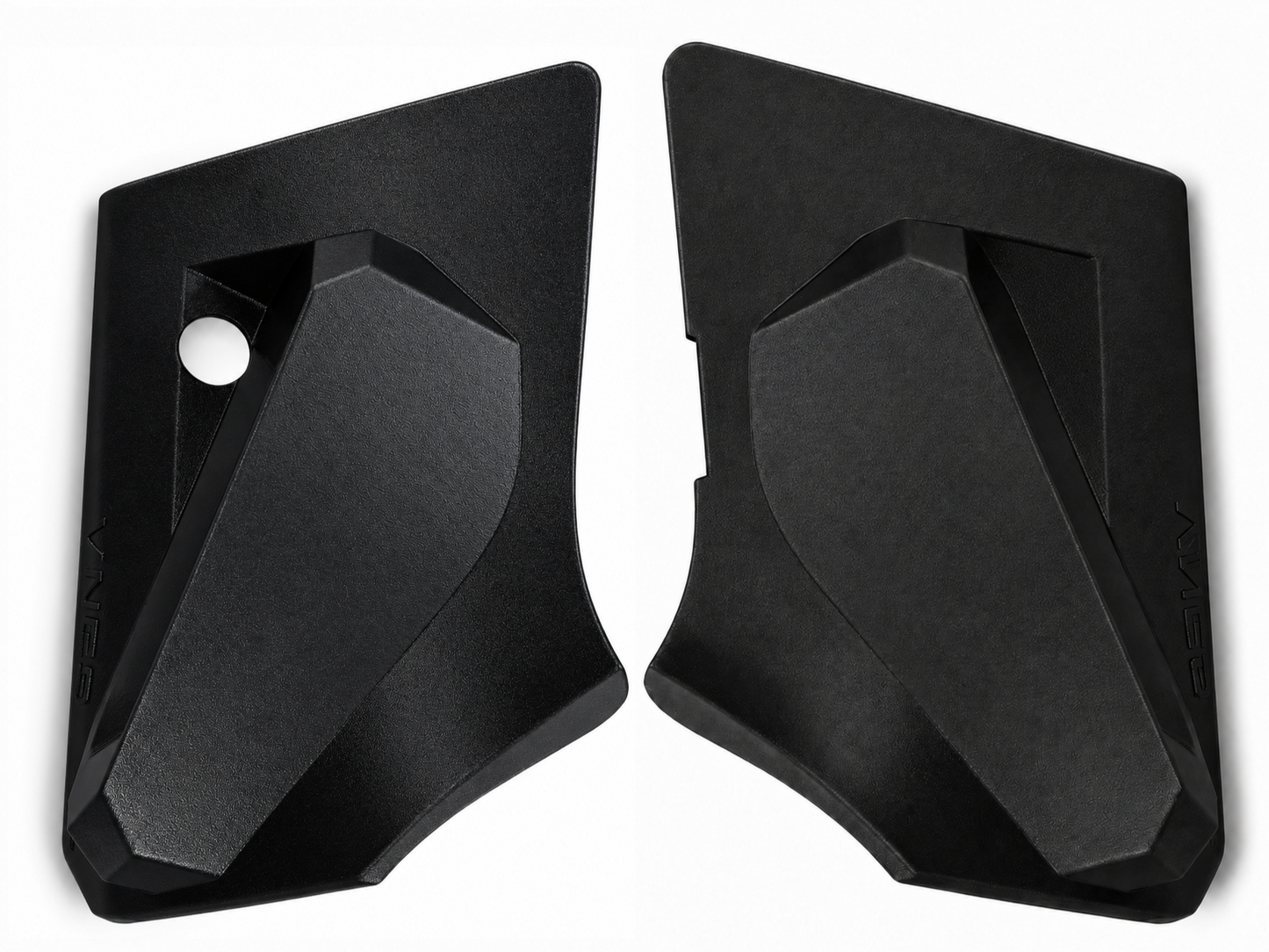

The cowl light housings use the original OEM mounting points and are supported by integrated magnets instead of standard clip retention. Two cowl mounting hardware / installation kits are included.
No drilling, cutting, or permanent vehicle modification is required for installation of the cowl light system.

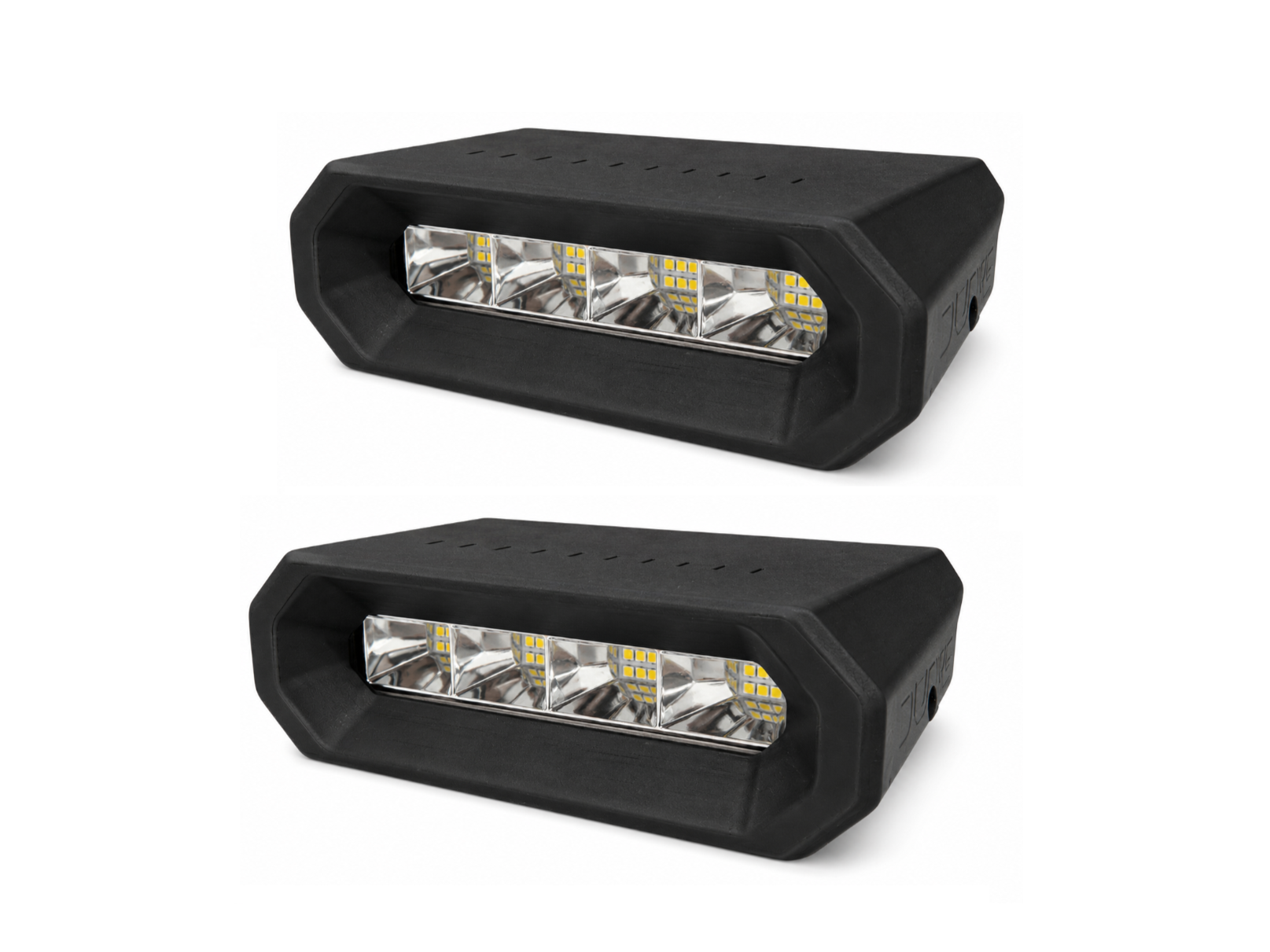

Hood Light System
Installation of the hood light system requires removal of the hood liner. Five 6 mm mounting holes must be drilled into the hood liner for each unit.
Each hood light unit is secured with four M5 countersunk mounting screws. Eight mounting screws are included in total.

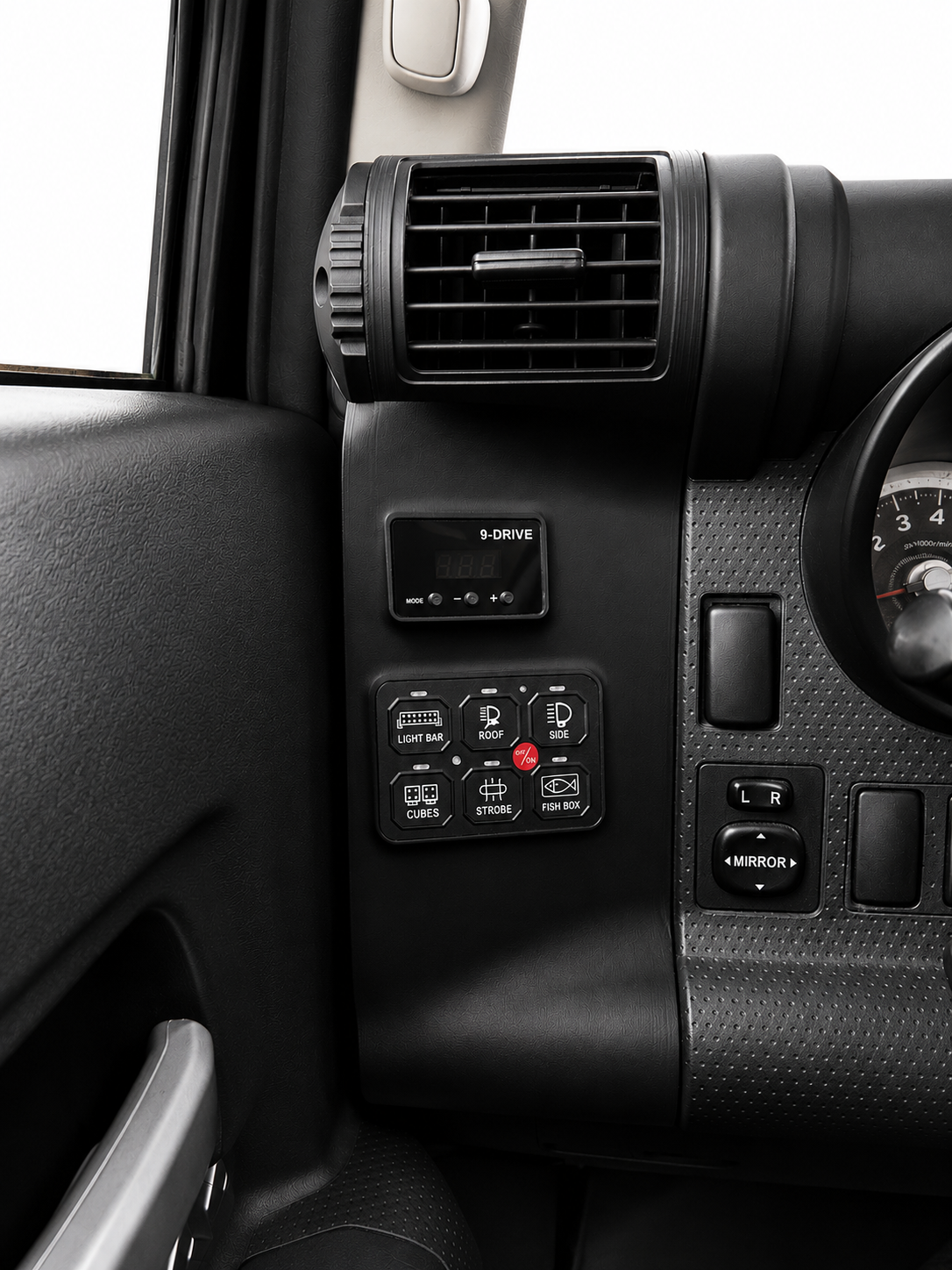

Vent Cover / Switch Panel Integration
The VNTR WORKS vent cover replaces the original vent cover and uses the original mounting points.
The vent cover is supplied in the correct vehicle-specific orientation for the selected configuration. LHD vehicles receive the left-side vent cover, while RHD vehicles receive the right-side vent cover.
The factory air vent is transferred into the replacement cover. Four vent-cover mounting clips are included.
The 6-gang light switch panel is integrated into the vent cover. The fuse box is included but supplied separately and is not integrated into the vent cover.
The throttle controller, switch-panel wiring harness, and throttle-controller wiring harness are included.
Electrical Connection
Four male/female connector sets are included for clean wiring integration.
The electrical installation can be completed by following the included installation instructions. Final connection depends on the selected vehicle configuration and the customer’s preferred wiring setup.
Professional electrical installation is recommended if the customer is not familiar with automotive electrical systems.
Installation difficulty is rated approximately 5/10.
Scope of Delivery
Each bundle includes:
• Two cowl light housings
• Two integrated cowl LED light bars
• Two cowl mounting hardware / installation kits
• Two hood light housings
• Two integrated hood LED units
• Eight M5 countersunk mounting screws
• Four male/female connector sets
• One vehicle-specific VNTR WORKS vent cover
• One integrated 6-gang light switch panel
• One fuse box, supplied separately
• One throttle controller
• One switch-panel wiring harness
• One throttle-controller wiring harness
• Four vent-cover mounting clips
• Installation instructions
Is it plug and play?
The cowl light system uses the original vehicle mounting concept and does not require drilling or permanent modification.
The hood light system requires removal of the hood liner and drilling five 6 mm mounting holes per unit. Each hood light unit is then secured using four of the included M5 countersunk mounting screws.
The vent cover uses the original mounting points, but the factory air vent must be transferred into the replacement cover.
The vent cover is supplied according to the selected LHD or RHD vehicle configuration.
The 6-gang light switch panel, throttle controller, fuse box, and required wiring harnesses are included. Installation and electrical connection can be completed by following the included instructions.
Professional installation is recommended if the customer is not familiar with vehicle wiring or automotive electrical systems.
