FJ CRSR Dual Gauge & Charging Console
FJ CRSR Dual Gauge & Charging Console
VNTR WORKS
Couldn't load pickup availability
Technical Specifications
Technical Specifications
Vehicle Configuration:
Left-Hand Drive (LHD)
Right-Hand Drive (RHD)
Installation Position: Driver-side glovebox lid
Gauge Capacity: 2x standard 52 mm gauges
Maximum Gauge Installation Depth: 62 mm
Gauge Orientation: Angled toward the driver
Housing Material: Carbon-fibre-reinforced ASA (ASA-CF)
Finish Options:
Raw / Unfinished
Matte Black Paint Finish
Phone Orientation: Landscape
Maximum Phone Width: 79 mm
Charging System: Integrated magnetic wireless charging puck
Wireless Charging Output: Up to 15 W
Power Connection: USB-C
Cable Length: Approximately 80 cm
Mounting: Uses the original glovebox hinge points and reuses the OEM hinge pins
Glovebox Functionality: Remains fully operational
Vehicle Modification Required: One 16 mm hole in the glovebox housing for cable routing
Installation Difficulty: 3/10
Scope of Delivery
Scope of Delivery
Each unit includes:
• 1x Vehicle-specific dual gauge housing for two 52 mm gauges
• 1x Integrated magnetic wireless charging puck
The original OEM hinge pins must be reused.
Gauges, sensors, gauge wiring and smartphone are not included.
Disclaimer
Disclaimer
Gauges, sensors, gauge wiring and smartphone are not included.
Wireless charging performance of up to 15 W depends on the connected power source, smartphone and case. Magnetic retention requires a compatible phone or magnetic charging case. Always confirm that the phone is securely attached before driving.
GPS-based speed readings depend on the device, application and satellite reception. They are intended as an additional reference and do not replace the vehicle’s factory speedometer.
Installation requires one 16 mm hole in the glovebox housing for cable routing. VNTR WORKS is not responsible for damage caused by incorrect installation, incompatible accessories or improper use.
Designed as an OEM+ cockpit integration system for the Toyota FJ Cruiser.

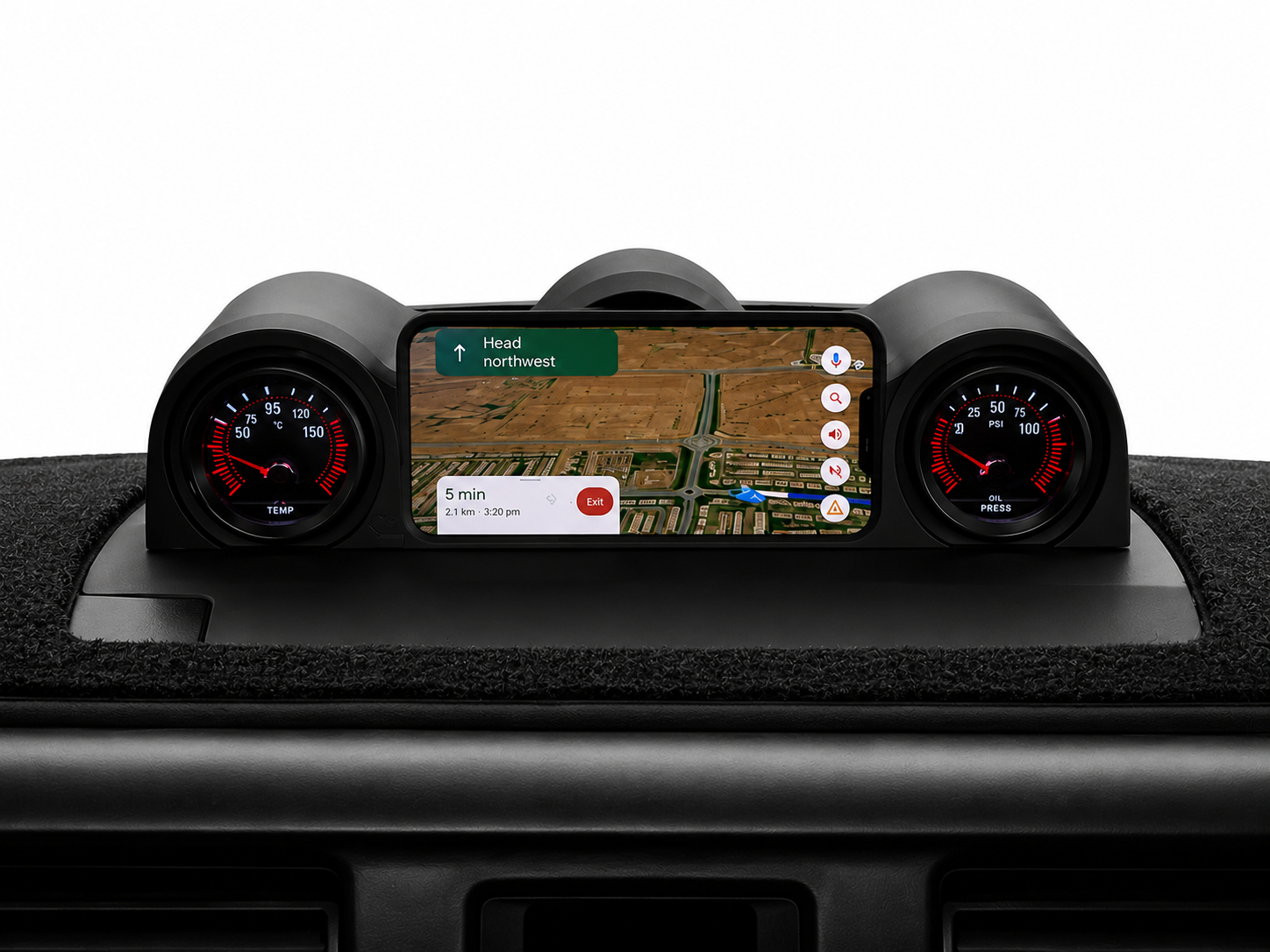

The FJ CRSR Dual Gauge & Charging Console replaces the driver-side glovebox lid and creates a clean, vehicle-specific integration for two auxiliary gauges and a smartphone while maintaining full glovebox functionality.

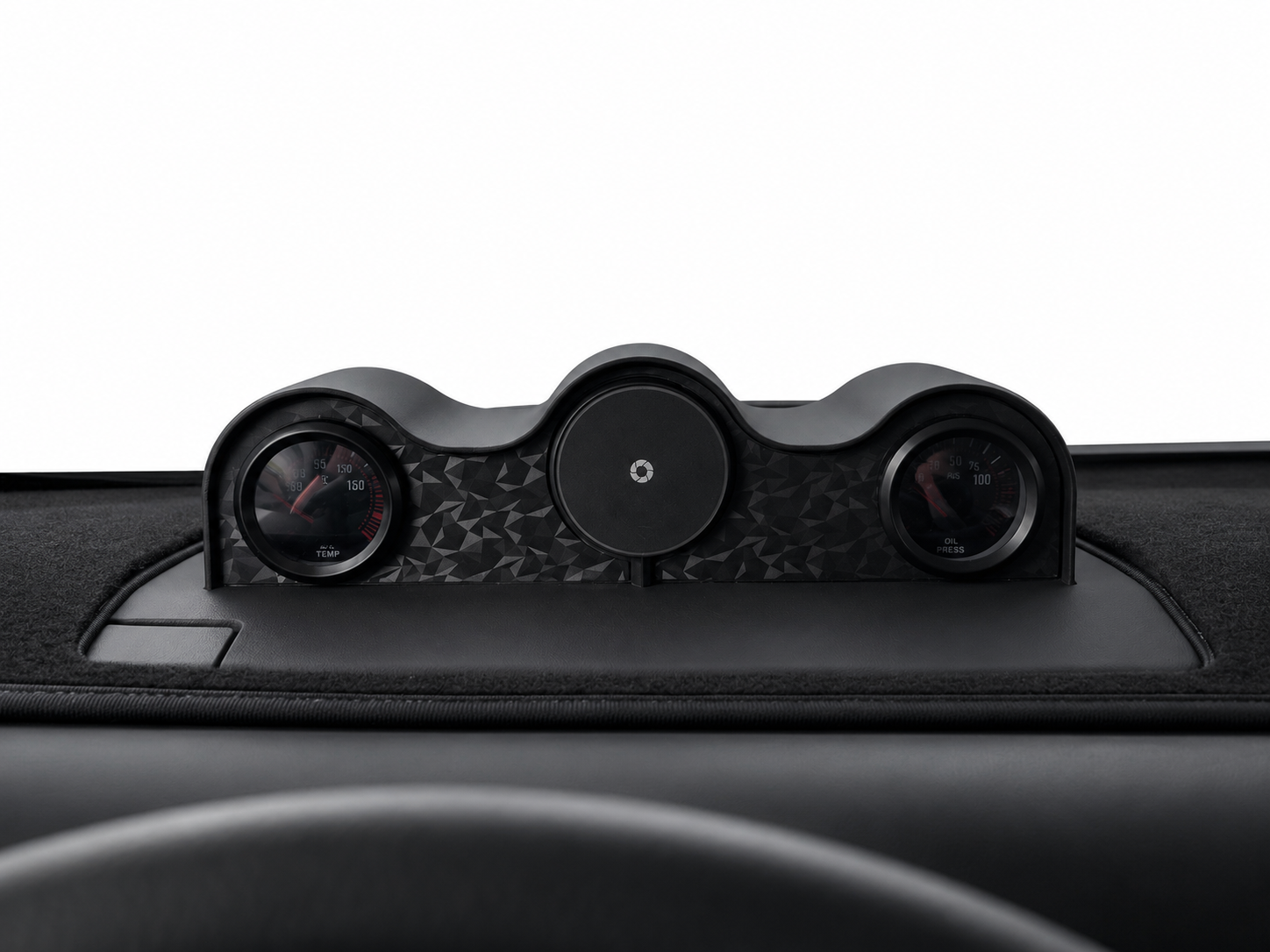

Designed as a vehicle-specific cockpit solution — not a universal gauge pod or phone mount. The system integrates two 52 mm gauge positions and a magnetic wireless charging puck into the original driver-side glovebox position for a clean OEM+ appearance.
Vehicle Configuration
The system is supplied according to the selected vehicle configuration.
LHD vehicles receive the left-hand-drive driver-side console configuration.
RHD vehicles receive the right-hand-drive driver-side console configuration.
Each version is mirrored for the correct driver-side orientation.
Installation & Wiring
The original driver-side glovebox lid is removed from the vehicle.
The VNTR WORKS replacement console installs using the original glovebox hinge points and reuses the OEM hinge pins.
The glovebox remains fully functional and can still be opened and closed normally.
A 16 mm hole must be drilled into the glovebox housing for cable routing.
Two openings accommodate standard 52 mm gauges with a maximum installation depth of 65 mm. Both gauges are angled toward the driver for clear visibility while driving.

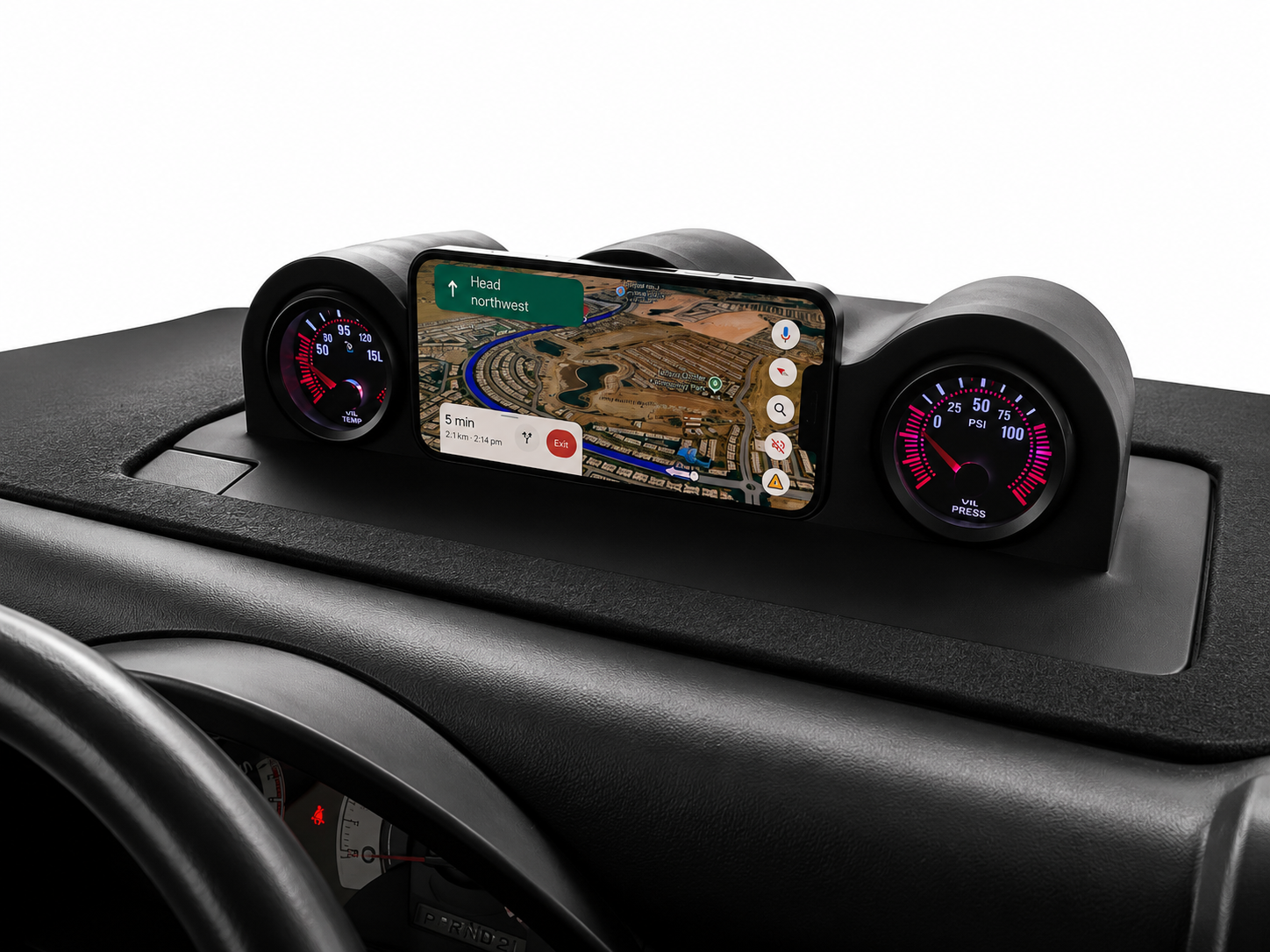

An integrated magnetic wireless charging puck securely holds a compatible smartphone in landscape orientation and provides wireless charging at up to 15 W.
Positioned within the driver’s peripheral field of view, the phone can be used for navigation or as an independent GPS-based speed display — particularly useful where tyre size or factory speedometer tolerance affects the indicated vehicle speed.
The charging puck uses a USB-C power connection with an approximately 80 cm fixed cable.
Installation difficulty is rated approximately 3/10.
Scope of Delivery
Each system includes:
• One vehicle-specific VNTR WORKS dual gauge and charging console
• One integrated magnetic wireless charging puck
The original OEM hinge pins must be reused.
Gauges, gauge sensors, gauge wiring and smartphone are not included.
Is it plug and play?
Mechanically, the system is designed as a direct OEM-style replacement using the original glovebox hinge points.
The original OEM hinge pins must be reused, and the glovebox remains fully operational after installation.
A 16 mm hole must be drilled into the glovebox housing for cable routing.
Gauge installation and wiring depend on the customer’s selected gauges, sensors and preferred electrical setup.
Wireless charging requires a suitable power source and a compatible phone or magnetic charging case.
Professional installation is recommended if the customer is not familiar with vehicle wiring or interior trim installation.
